| BRAND | Valco |
| Product | 00.0002.5595 |
| Description | Level control - Side mount - No. 2 contacts |
| Internal code | IMP5008600 |
| Custom code | 90261029 |
| Technical specification | Mod. L2.B77.7.C.25GO.W.I33 Suitable for mounting from outside the tank 1" Gas-M body and process connection - brass material PTFE gasket Float type B77 - Spansil material Type C adjustable float rod - AISI 303 material Point of intervention see attached documentation, Tab.4-5 Pmax 10 bar - Tmax 120 °C Adjustable calibration SPDT microswitch contacts - Max. electrical load 250Vac/3A - 48Vdc/3A Electrical output: PA66 nylon case - fiberglass PG9 cable entry Degree of protection IP65 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Valco - 00.0002.5595 Level control - Side mount - No. 2 contacts number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

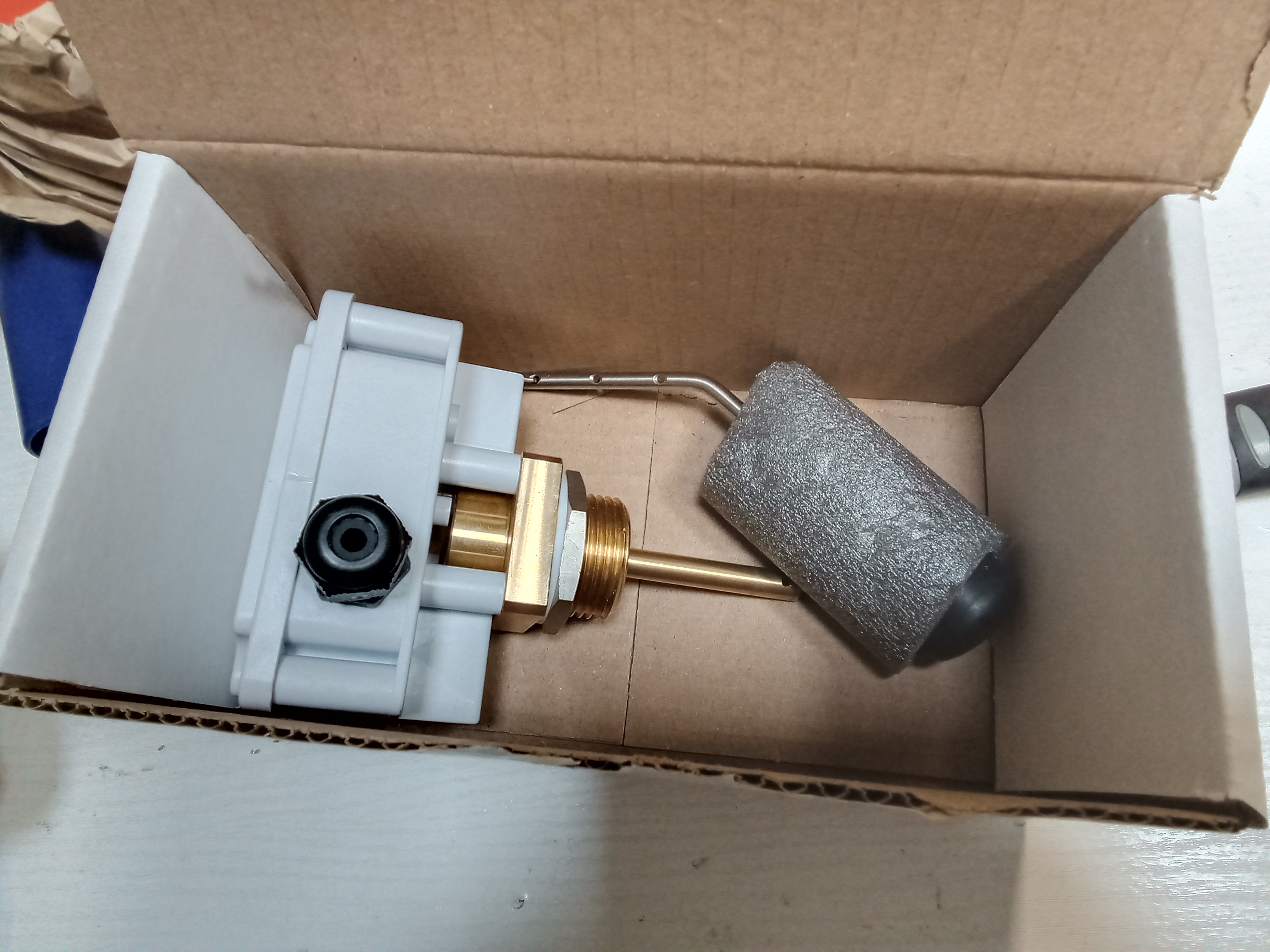

IMG_2024-10-09-13-57-24-361.jpg | |
|
|

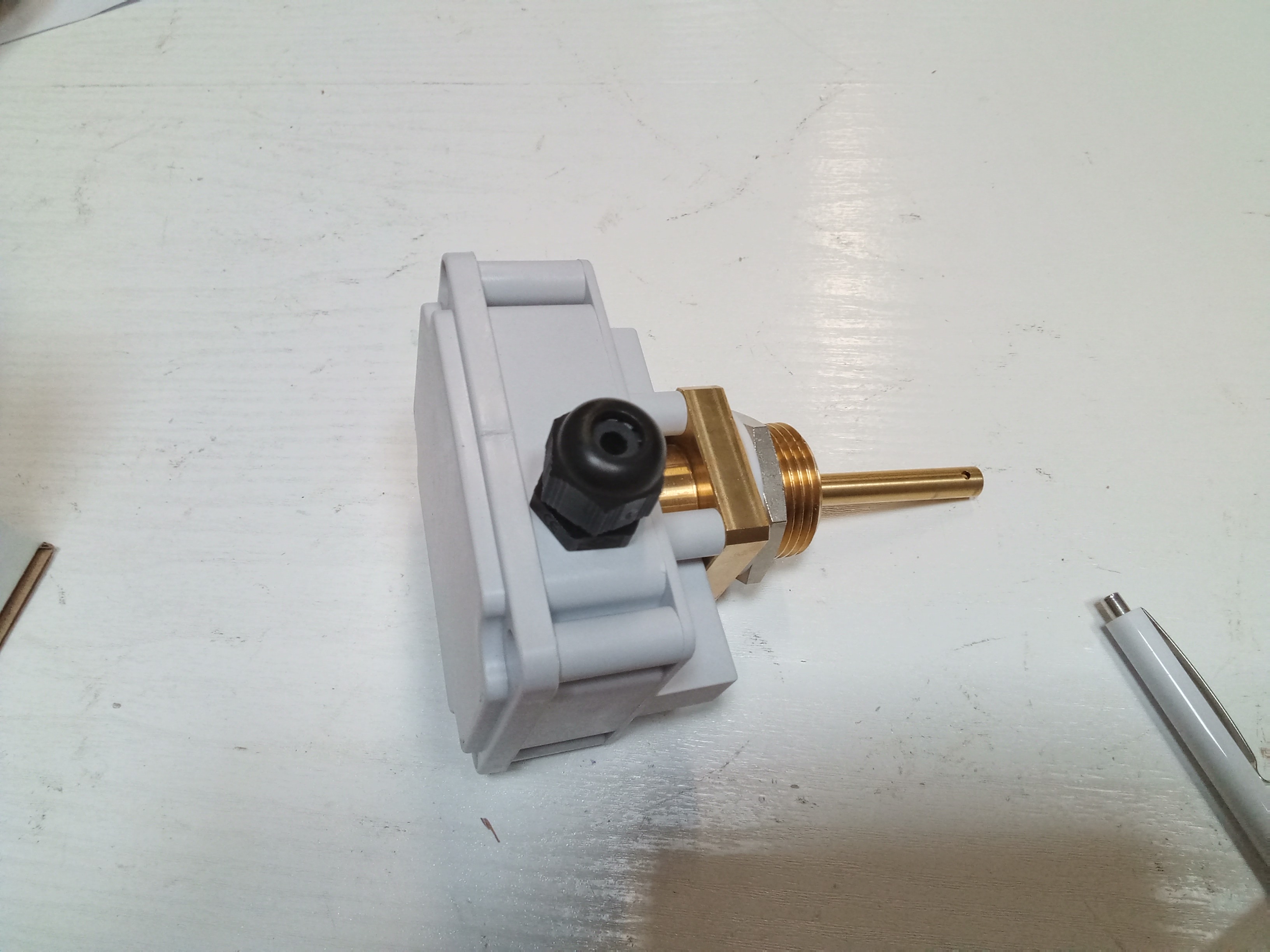

IMG_2024-10-09-13-57-18-246.jpg | |
|
|

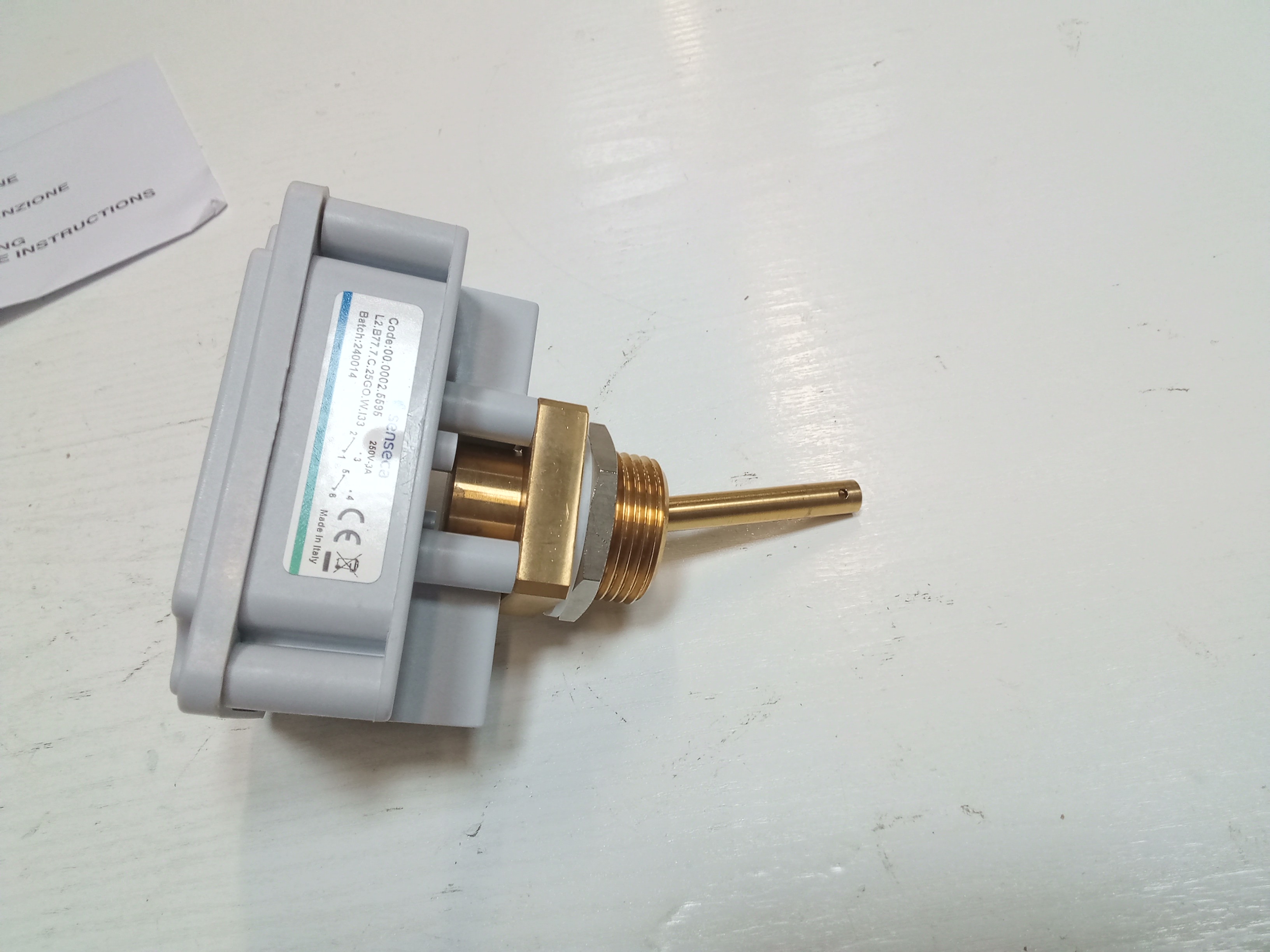

IMG_2024-10-09-13-57-12-989.jpg | |
|
|

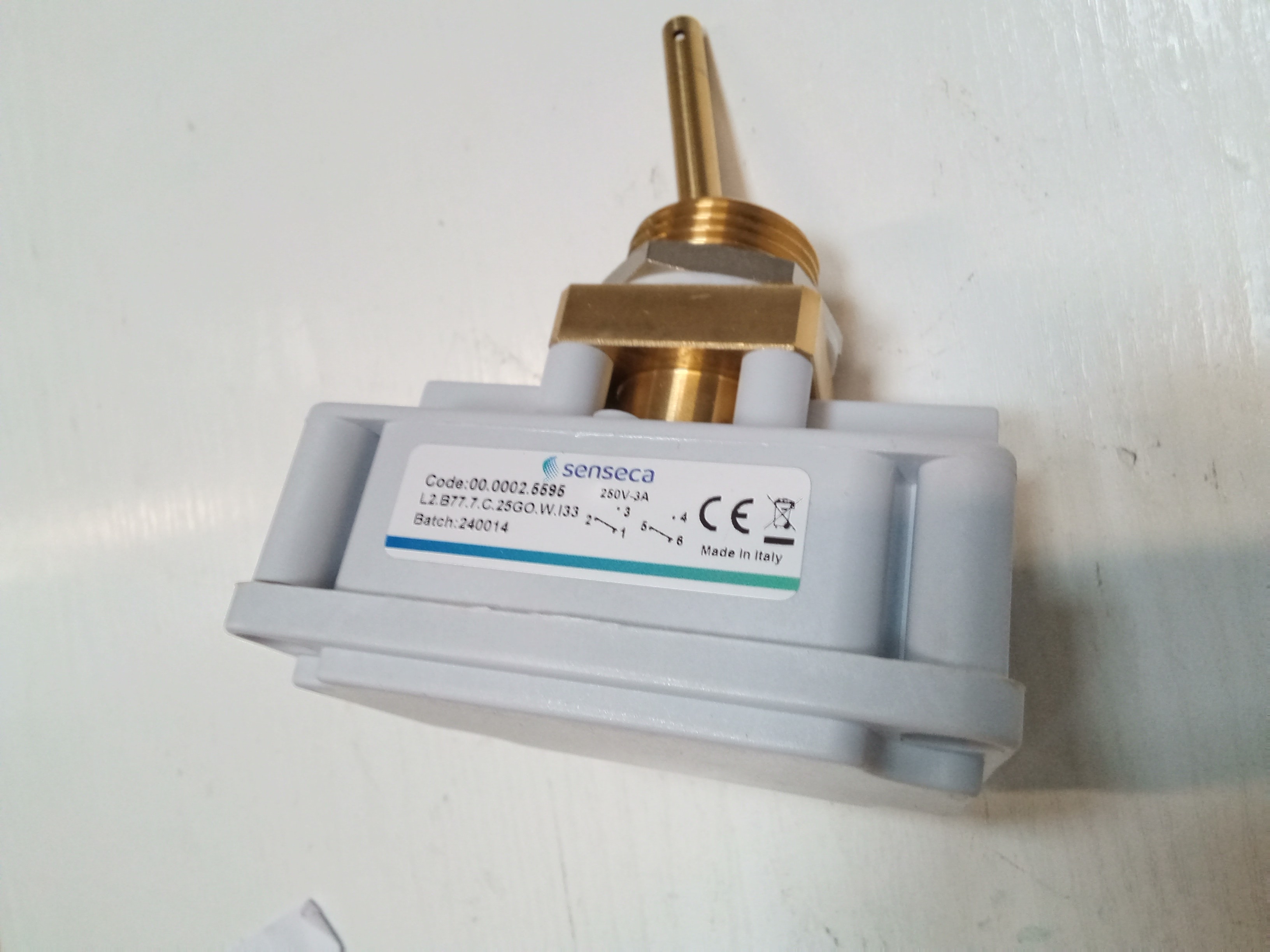

IMG_2024-10-09-13-56-59-590.jpg | |
|
|

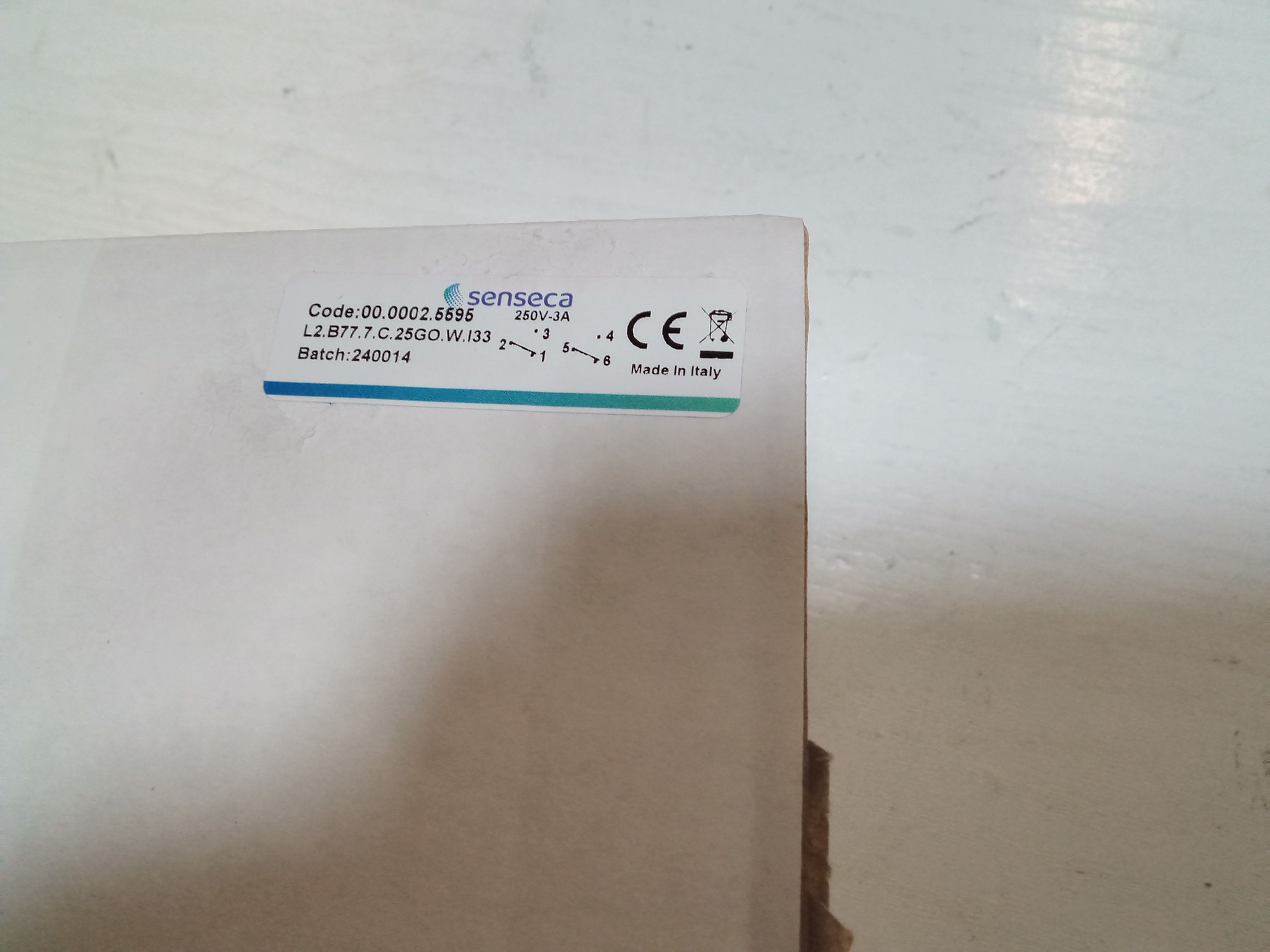

IMG_2024-10-09-13-56-42-961.jpg |
