| BRAND | Weishaupt |

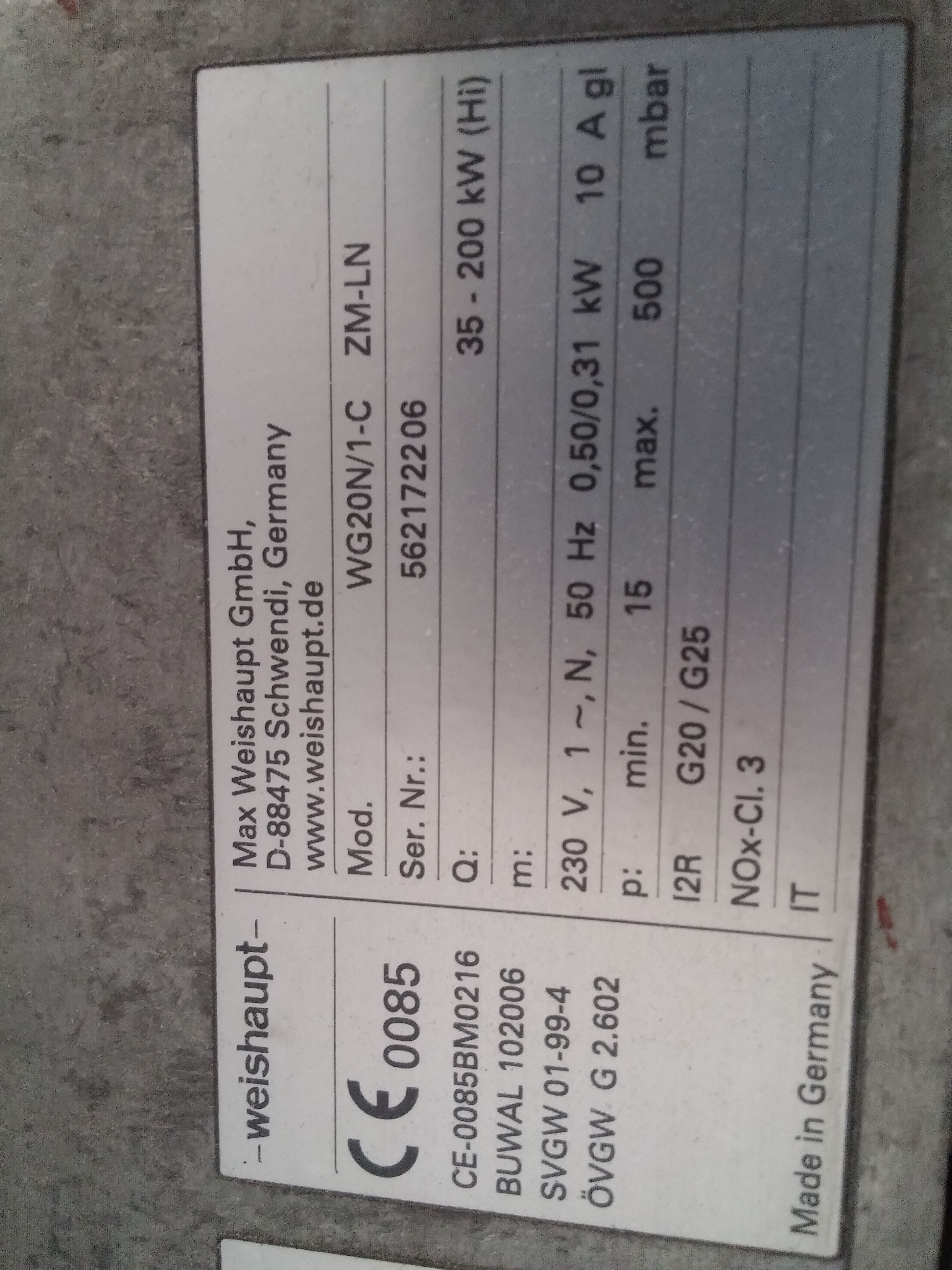

| Product | 23221644 / WG20N/1‑C ZM‑LN |
| Internal code | IMP1476604 |
| Weight | 27 |
| Custom code | 84162010 |
| Technical specification | 23221644 Weishaupt Low-NOx, sliding-two-stage, W-series gas burner, model WG20N/1‑C ZM‑LN. Modulating load control of the burner can be achieved via three-term switching from a suitable PID controller (separate supply). Alternatively, modulation control can be achieved either via an external Modbus-RTU or Profibus-DP signal, if the burner is equipped with the optional EM 3/2 field bus expansion module, or via an external 0 10 V or 4 20 mA signal if the burner is equipped with the optional EM 3/3 analogue expansion module. Burner construction includes Weishaupt motor, flame sensor, ignition equipment, and digital combustion manager. Monitoring and control of all important burner functions and the electronic compound regulation of fuel and air is effected by the integrated digital combustion manager. Setting and control of the burner is achieved using the burner-mounted digital control and display unit. Burner complete with: • 1" gas multifunction assembly, incorporating • Solenoid valves • Low-gas and valve-proving pressure switch • Governor • Filter • 2 double nipples • 90° elbow • Gas ball valve Minimum gas flow pressure: 17 mbar* Maximum gas flow pressure: 25 mbar *Pressure required at the inlet to the gas valve train with all upstream consumers running at maximum load. Special Version 23000780 100 mm combustion head extension 23000792 Valve train without TAE 23000798 Solenoid valve for air pressure switch test for continuously running fan / run-on fan (postpurge) facility 23001119 H1 flame tube for high temperatures up to 1000 °C 23001151 EM 3/3 analogue expansion module to accept an external 0-10 V or 4-20 mA modulation signal With the following configuration: National execution: Spain Type of gas: Natural gas Control & motor voltage: 230 V Frequency: 50 Hz Combustion manager: W-FM 25 Pressure Equipment Directive: No W-FM: Burner-mounted |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Weishaupt - 23221644 / WG20N/1‑C ZM‑LN number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
