| BRAND | Interroll |
| Product | MI-DL0113 DL1133-AAA0AD0ABJSC-295mm |
| Description | Trommelmotor 113S |
| Internal code | IMP152009 |
| Weight | 11.8 |
| Custom code | 8501 2000 90 0 |

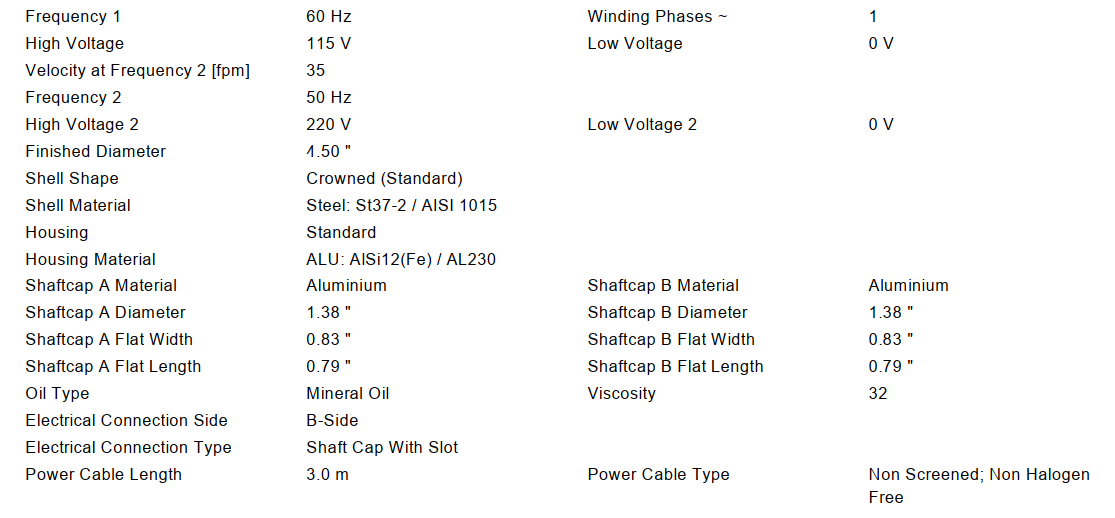

| Technical specification | Product Name DL 0113 Asynchronous 3-Phase Certification UL cRUus UL Certified IP Rating 66 Shell Length (SL) 10.748 " Face Width (FW) 11.61 " Between Frames (EL/LW/BF) 11.85 " AGL Overall Length 13.43 " Poles 8 Power 0.06 hp Torque [Nm] 14.4 Belt Pull Force 254 N Gear Ratio (i) 38.51 Velocity at Frequency 1 26 fpm Frequency 1 60 Hz External Wiring Diagram E32 Low Voltage 230 V Current, Low Voltage 0.55 A Velocity at Frequency 2 22 fpm Frequency 2 50 Hz High Voltage 2 0 V Low Voltage 2 230 V Shell Material Steel: St37-2 / AISI 1015 Shell Diameter 4.46 " Shell Diameter B 4.42 " Shell Shape Crowned (Standard) Housing A Material ALU: EN-AC44300 / AL230 Housing B Material ALU: EN-AC44300 / AL230 Shaftcap A Material Aluminium Shaftcap B Material Aluminium Shaftcap A Diameter 1.38 " Shaftcap B Diameter 1.38 " Shaftcap A Flat Width 0.83 " Shaftcap B Flat Width 0.83 " Shaftcap A Flat Length 0.79 " Shaftcap B Flat Length 0.79 " Oil Type Mineral Oil Electrical Connection Shaft Cap with Slot Power Cable Length 3.0 m Power Cable Type Non Screened; Non Halogen Free |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Interroll - MI-DL0113 DL1133-AAA0AD0ABJSC-295mm Trommelmotor 113S number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
