| BRAND | Thermokon |

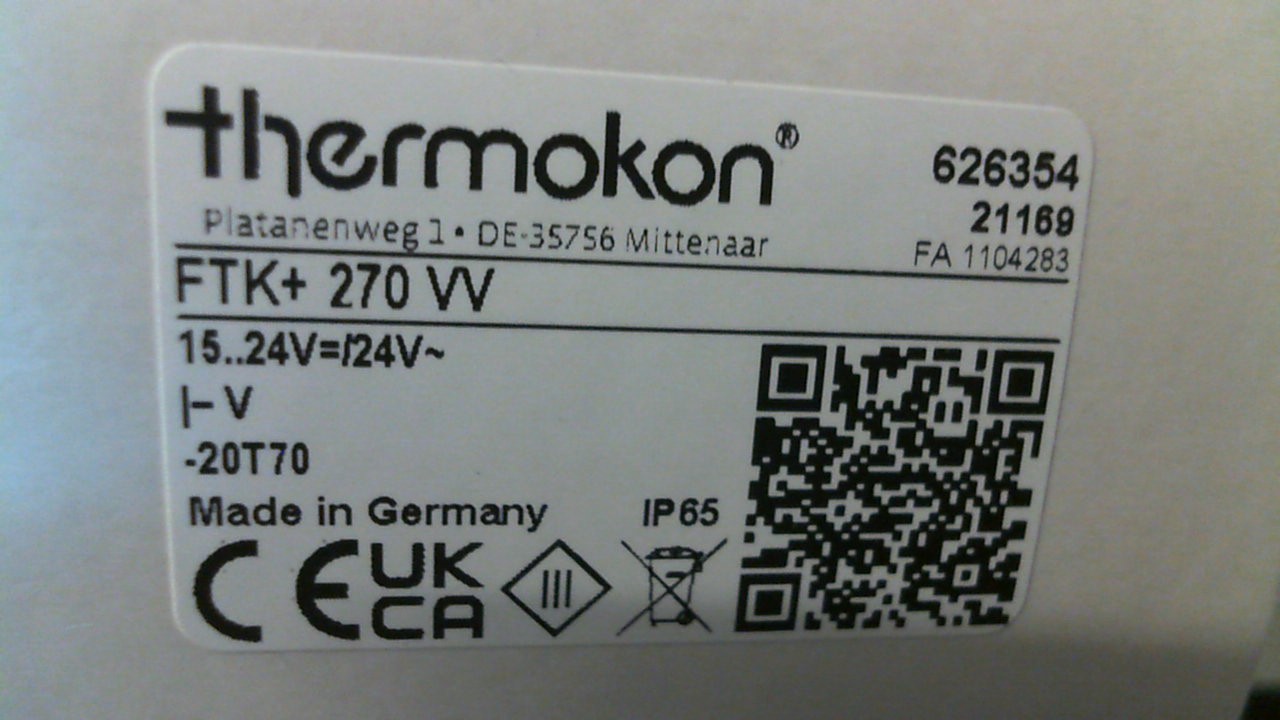

| Product | 626354 (FTK+ 270 VV) |
| Description | Channel sensor temperature, humidity — 0.. 5 V, 0.. 10 V |
| Internal code | IMP4205984 |
| Custom code | 90258040 |
| Technical specification | Power supply: 15.. 24 V = (± 10%) or 24 V ~ (± 10%) output: 2x 0.. 10 V = Temperature measurement range ፦20.. +80 °C, adjustable on the transmitter Humidity measurement range: 0..100% rH without condensation, enthalpy: 0.. 85 kJ/kg, absolute humidity: 0.. 50 | 0.. 80 g/m³ or dew point: 0.. +50 ~ -20.. +80 °C, adjustable on the transmitter Temperature accuracy: ±0.5 °C, humidity accuracy: ± 2% between 10..90% rH Sensor tube: PA6, black (length 270 mm, Ø=19.5 mm) USE-S impact and shatterproof housing with hinged lid (PC, pure white, IP65) Removable cable entry (M20 flex, replaceable) and removable plug terminal (max. 2.5 mm²) Potentiometer for calibration of offset values Includes mounting flange MF20 and fixing screws Customs tariff number: Country of origin: Net weight (kg): 90258040 EN 0.1600 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Thermokon - 626354 (FTK+ 270 VV) Channel sensor temperature, humidity — 0.. 5 V, 0.. 10 V number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
