| BRAND | Stahl |
| Product | P/N: 150854, Type: 8571/11-506 |
| Description | switch socket |
| Internal code | IMP173198 |
| Weight | 2.2 |
| Custom code | 85366990 |
| Technical specification | Switch socket explosion-proof Type: 8571/11-506 Rated operating voltage AC: 200 - 240 V 346 - 415 V Frequency range: 50 - 60 Hz Rated operating voltage DC: 0 V 0 V Detailed number of poles: 5 P (3 P + N + PE) Code colour: red Coding (clock setting): 6 Case material: polyamide Application area (zones): 1, 2, 21, 22 Scope: European Union (ATEX) IECEx Min. ambient temperature: -30 °C Max. ambient temperature: +55 °C Rated operating current: 32 A Gas explosion protection: II 2 G Ex db eb IIC T5 Gb Dust explosion protection: II 2 D Ex tb IIIC T75 °C Db Ambient temperature max.2: +40 °C Gas explosion protection2: II 2 G Ex db eb IIC T6 Gb Dust explosion protection2: II 2 D Ex tb IIIC T60 °C Db Protection class (IP): IP66 Introductions: 2 x M32 x 1.5 Cable and line entries: 1 x M32 x 1.5 Introduction 1 type: 8161/7-M32-2109 Cable entry material: black polyamide Line diameter: 9... 21 mm Sealing plug: 1 x M32 x 1.5 Sealing plug material: black polyamide Plate with threaded holes: with 2 x M32 x 1.5 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Stahl - P/N: 150854, Type: 8571/11-506 switch socket number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

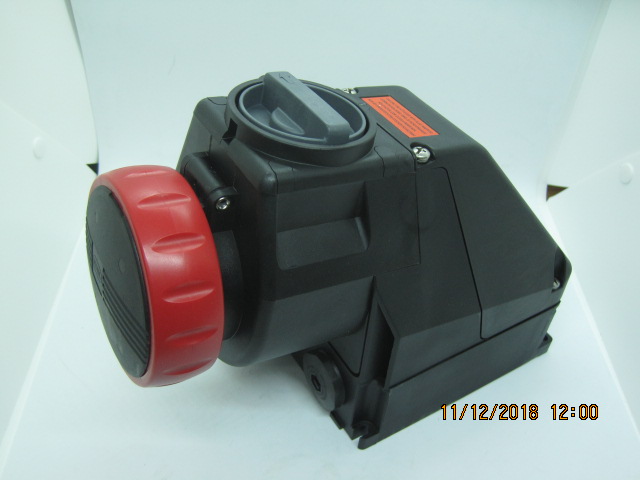

IMG_9373.JPG |
