| BRAND | TR Electronic |
| Product | CE65M*4096/4096 |
| Description | Absolute rotary encoder |
| Internal code | IMP3308685 |
| Weight | 0.55 |
| Custom code | 90318020 |

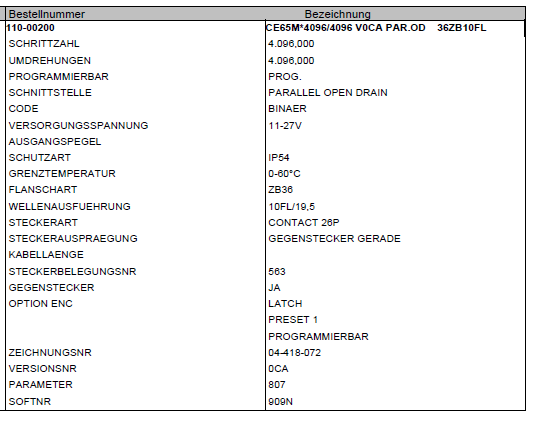

| Technical specification | Order number 110-00200 CE65M*4096/4096 V0CA PAR.OD 36ZB10FL STEP NUMBER 4,096,000 ROTATIONS 4,096,000 CONFIGURABLE PROG. PARALLEL OPEN DRAIN INTERFACE CODE BINARY SUPPLY VOLTAGE 11-27V OUTPUT LEVEL PROTECTION CLASS IP54 WORKING TEMPERATURE 0-60°C ZB36 FLANGE TYPE SHAFT VERSION 10FL/19.5 CONNECTION TYPE CONTACT 26P CONNECTION DIRECTION OF THE MATING PLUG STRAIGHT CABLE LENGTH PLUG ASSIGNMENT NUMBER 563 MATCHING PLUG NO ENC LATCH OPTION PRESET 1 PROGRAMMABLE DRAWING NO. 04-418-072 VERSION NUMBER 0CA PARAMETER 807 SOFTNR 909N DOCUMENTATION NUMBER DOCUMENTS AL: N ECCN: N mtTFD [y] (T=45°C, DC=0) >= 20 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for TR Electronic - CE65M*4096/4096 Absolute rotary encoder number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
