| BRAND | CeTech |
| Product | CFIB - 2 - MA - 35H - ET - S - 0 |
| Internal code | IMP4878038 |
| Custom code | 90330000 |

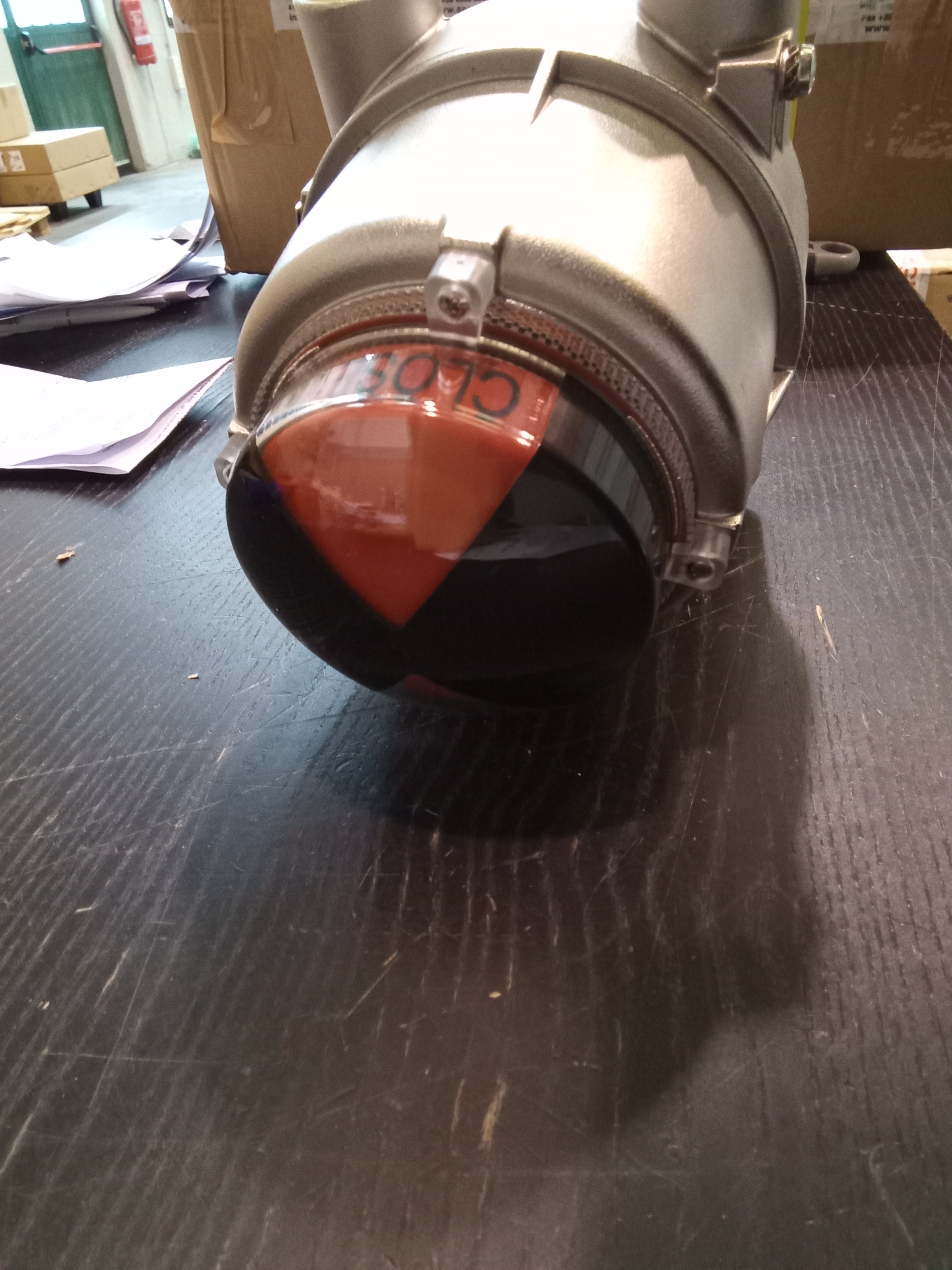

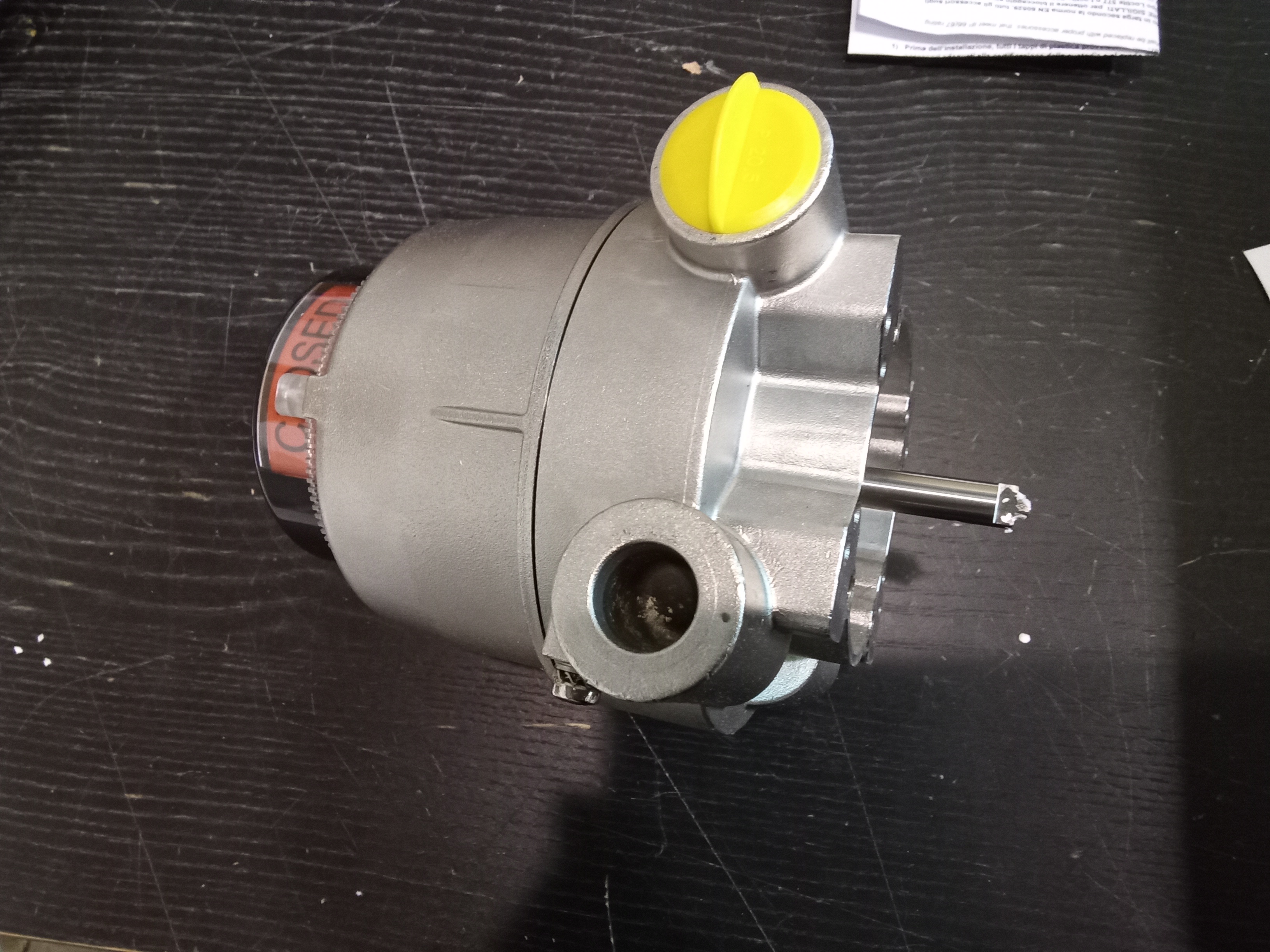

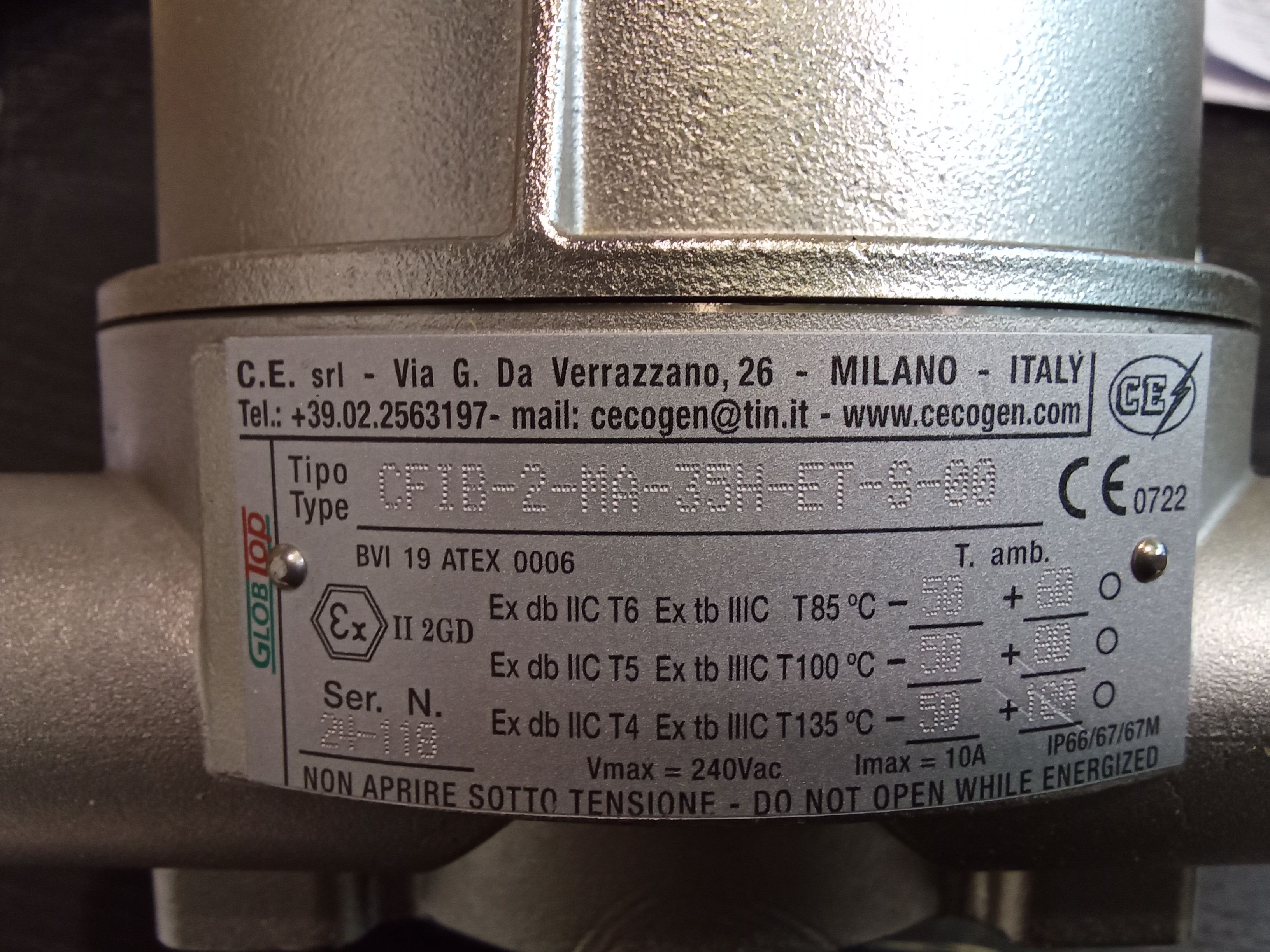

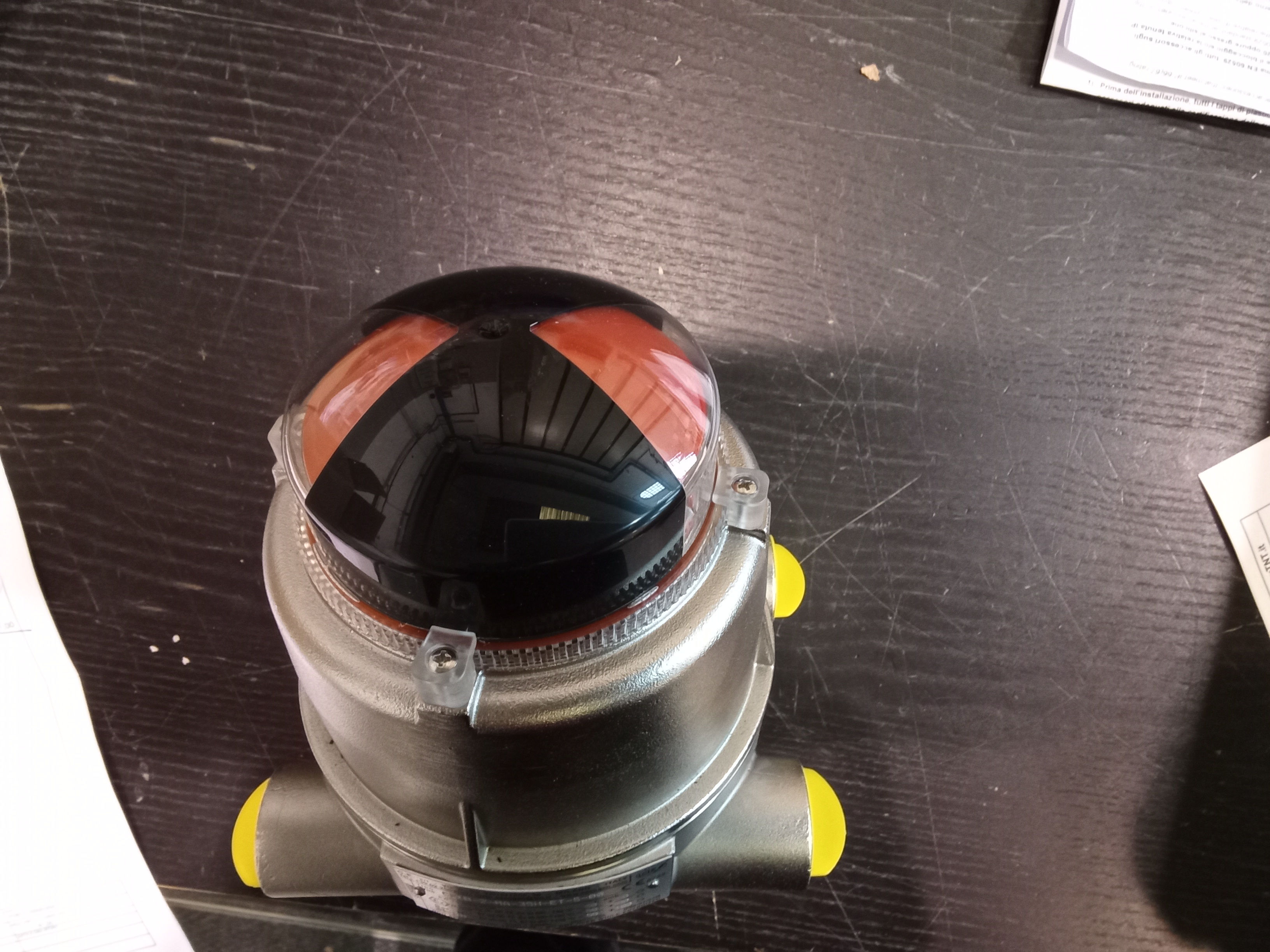

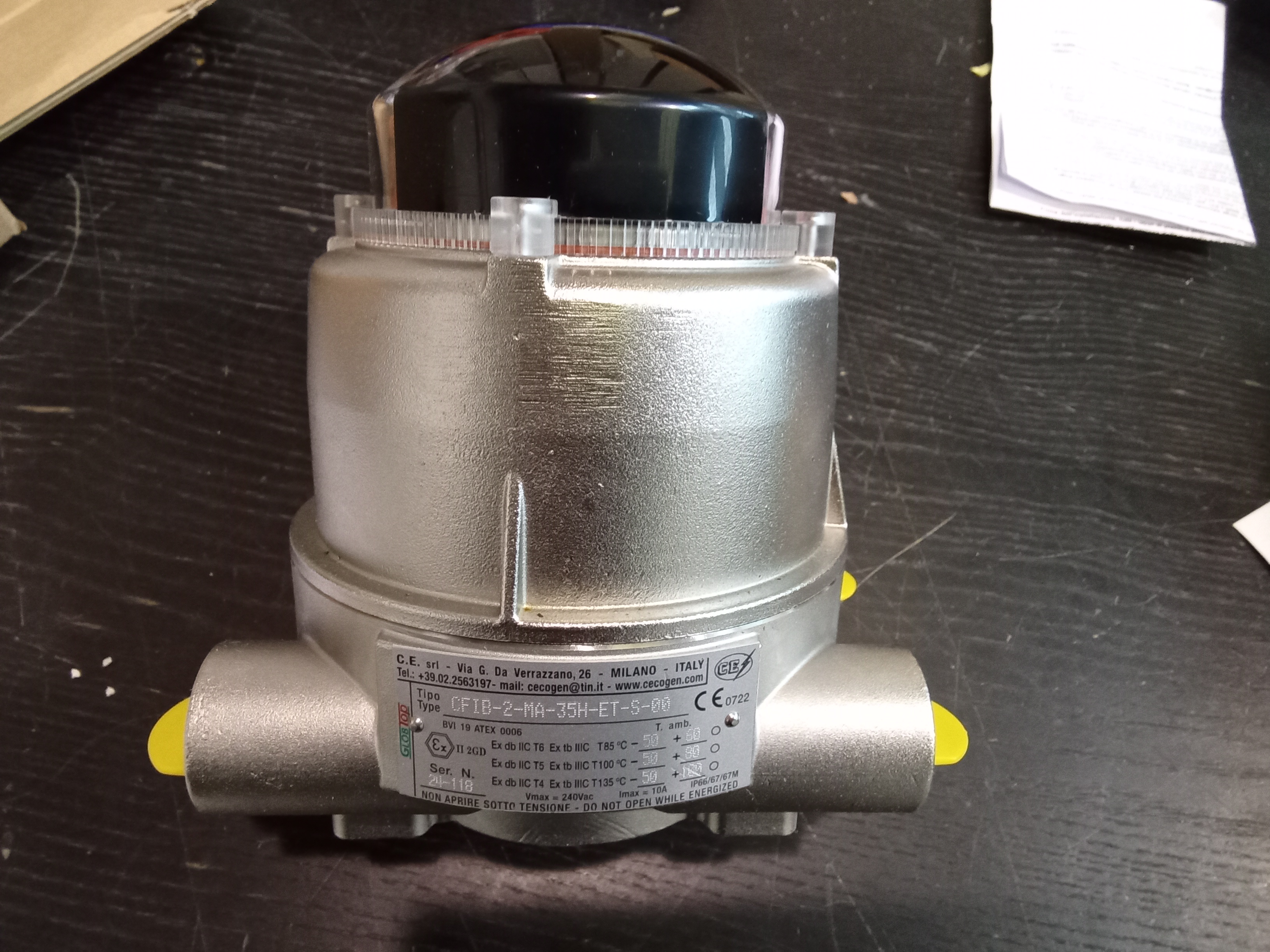

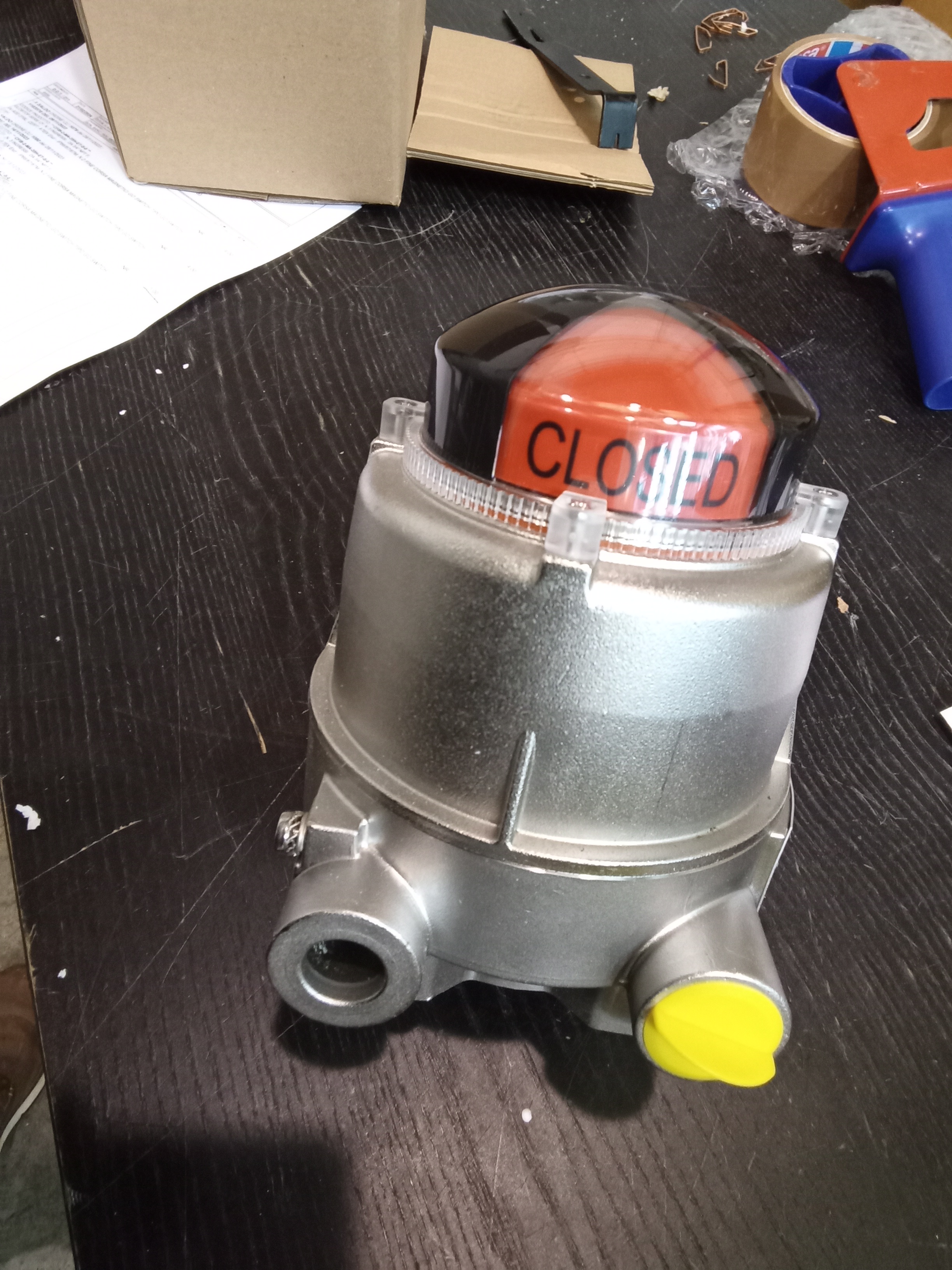

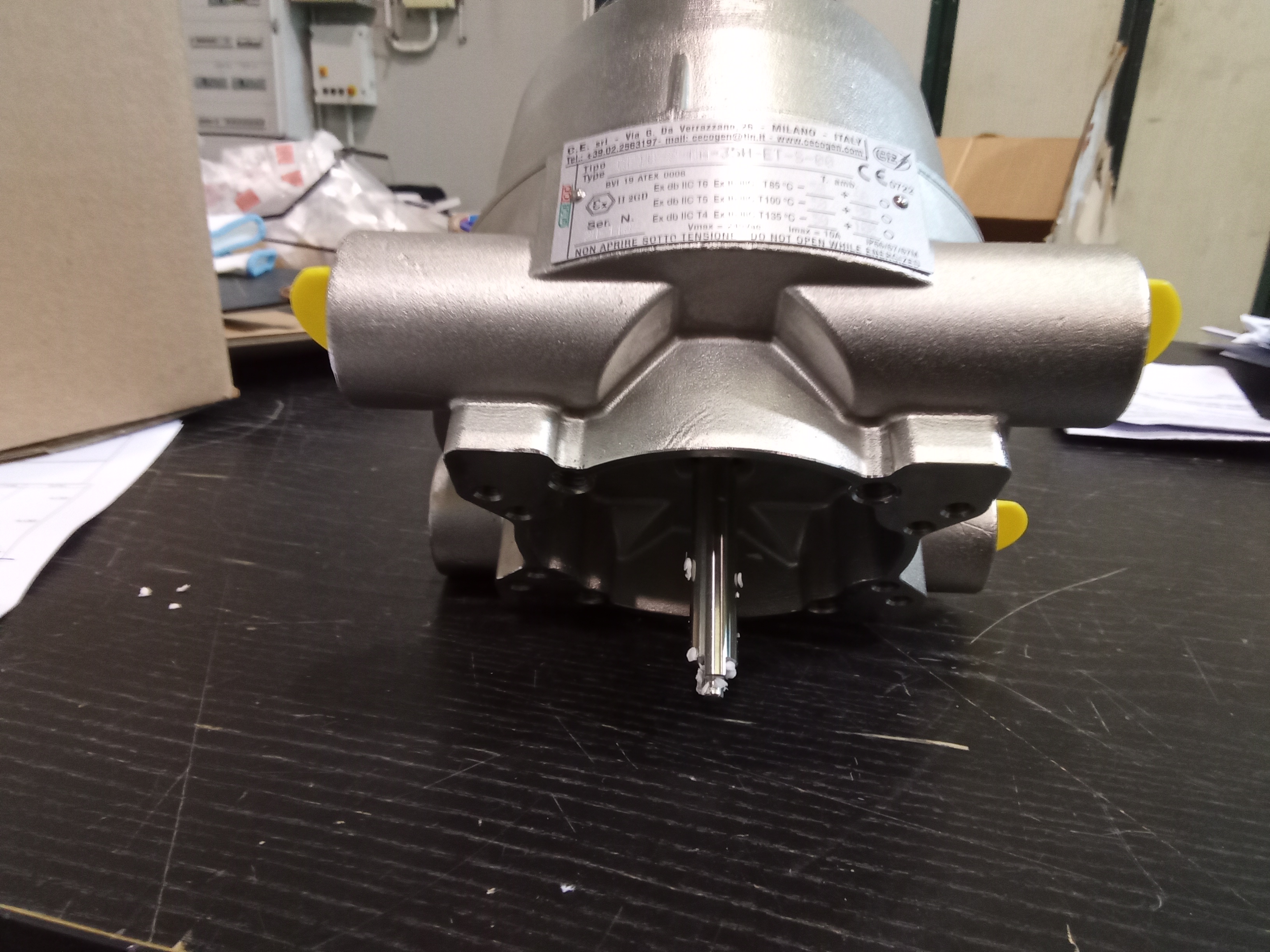

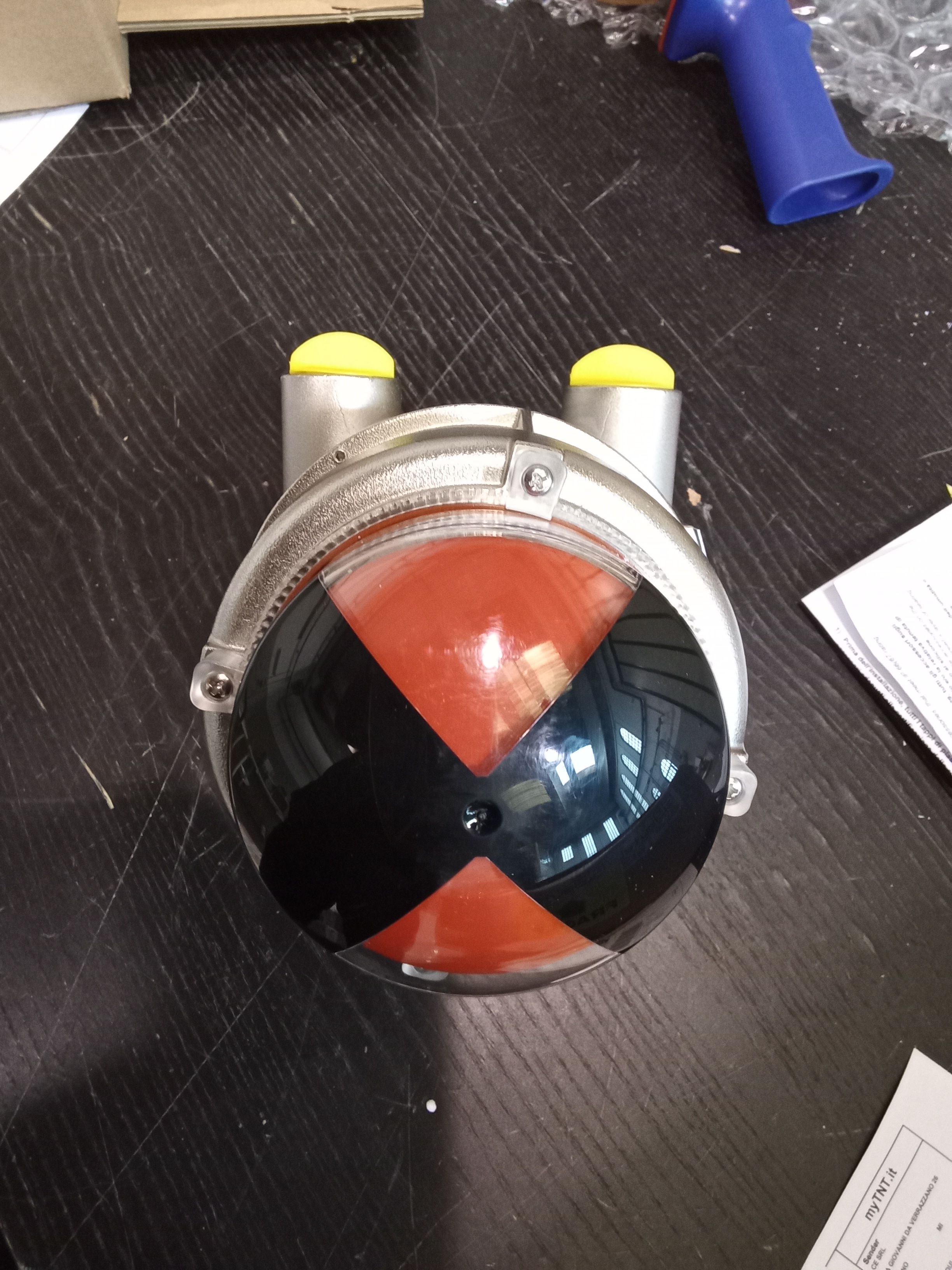

| Technical specification | GLOBTOP case mod. CFIB in 316L stainless steel, with open/closed position indicator for rotary valves (maximum resistance to chemical and atmospheric agents) ATEX certification (BVI 19 ATEX 0006): Ex II 2 GD — Ex db IIC T6/T5/T4 Ex tb IIIC T85/T100/T135°C (Tamb. from -50°C to +60/+80/+100°C) - Cable entry: n. 3 3/4 “holes npt-f - Terminal block: 6 terminals plus ground connection (option 12 terminals) - Degree of protection: IP66/67/67M (with shaft rotation test) - Treatment: electropolishing - Position indicator: red-green three-dimensional dome - Shaft: namur coupling — 316 stainless steel material - Each case is equipped with n. 2 GO SWITCH with the following characteristics: - Passive type 30 Mod. 35 Hermetic series magnetic window (without power supply and without reed contacts) - Mechanical contact (snap action & dry contact): gold-plated SPDT in silver-cadmium; hermetic - Contact flow: 4A AC 120V AC, 2A AC 240V AC and 3A DC 24V DC resistive load - Sensitive distance: 3 mm. (with iron feedback) - Differential (hysteresis): 3 mm. (with iron feedback) - Response time: 8 milliseconds - Working temperature: see enclosure certification table - Housing material: cupronickel - nr.4 connection conductors insulated in PVC 105°C |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for CeTech - CFIB - 2 - MA - 35H - ET - S - 0 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
