| BRAND | Carlo Gavazzi |
| Product | CTD10H32005AXXX |

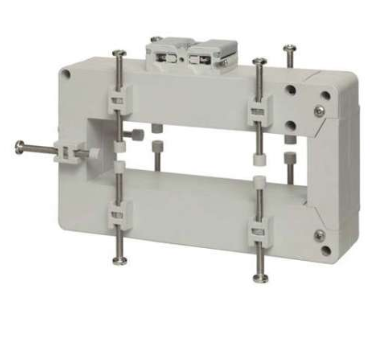

| Description | CURRENT TRANSFORMER 3200; 5A |
| Internal code | IMP241764 |
| Weight | 1 |
| Technical specification | Specifications Primary brandCarlo Gavazzi Main functionCurrent Transformer (CT) Product series / family nameCTD series FunctionsAC solid-core current transformer Designsealable term. blk. cover Connection typedouble screw connections (up to 8 wires) Mounting modehorizontal mounting Degree of protectionIP20 Dimensions50x125mm window (with up to 10 isolated fixing screws) W161.3mm x H123.4mm x D40mm housing Primary current3200 A Secondary current5 A Order code / Manufacturer SKUCTD10H32005AXXX Manufacturer product statusCommercialized Compliant with standard(s)EN 61869-2 ABS; self-extinguishing; UL 94 V-0 (housing) CE IP00 (without sealable terminal block covers) IP20 (with sealable terminal block covers + wire terminals) BenefitsBridging of current transformer output without changing the connection of the secondary so to avoid any output overvoltage during either the maintenance or the installation procedure. Easy output and earth connection. Screw terminals compatible with any kind of wire terminals. Accuracy class30VA (Class 0.5) Class 1 (Cl.1) at 50VA max. burden Class 3 (Cl.3) at 60VA max. burden |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Carlo Gavazzi - CTD10H32005AXXX CURRENT TRANSFORMER 3200; 5A number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
