| BRAND | Carlo Gavazzi |
| Product | CTD10S30005AXXX |

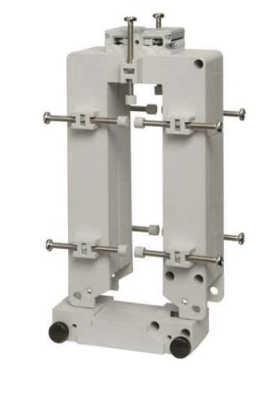

| Description | CURRENT TRANSFORMER SPLIT CORE 3000; 5A |
| Internal code | IMP241778 |
| Weight | 1 |
| Technical specification | Primary brandCarlo Gavazzi Main functionCurrent Transformer (CT) Product series / family nameCTD series FunctionsAC split-core current transformer Designsealable term. blk. cover Connection typedouble screw connections (up to 8 wires) Degree of protectionIP20 Dimensions50x126mm window (with up to 10 isolated fixing screws) W106.7mm x H177.9mm x D40mm housing Primary current3000 A Secondary current5 A Order code / Manufacturer SKUCTD10S30005AXXX Manufacturer product statusCommercialized Compliant with standard(s)EN 61869-2 ABS; self-extinguishing; UL 94 V-0 (housing) CE IP00 (without sealable terminal block covers) IP20 (with sealable terminal block covers + wire terminals) BenefitsEasy way to open and close the CT core by the dedicate sealable screws. Bridging of current transformer output without changing the connection of the secondary so to avoid any output overvoltage during either the maintenance or the installation procedure. Easy output and earth connection. Multiple screws provided with isolation cap screws to grant a strong and reliable fixing of the current transformer to the busbar. Screw terminals compatible with any kind of wire terminals and protection of screw terminals using specific sealable covers to assure always the best safety. Accuracy classClass 1 (Cl.1) at 30VA max. burden Class 3 (Cl.3) at 50VA max. burden |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Carlo Gavazzi - CTD10S30005AXXX CURRENT TRANSFORMER SPLIT CORE 3000; 5A number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
