| BRAND | Sun Hydraulics |
| Product | CWIL-LGN |

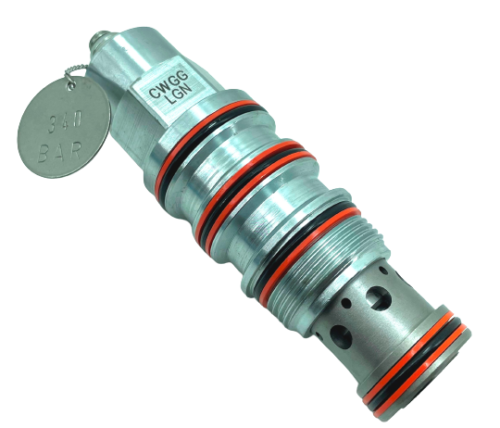

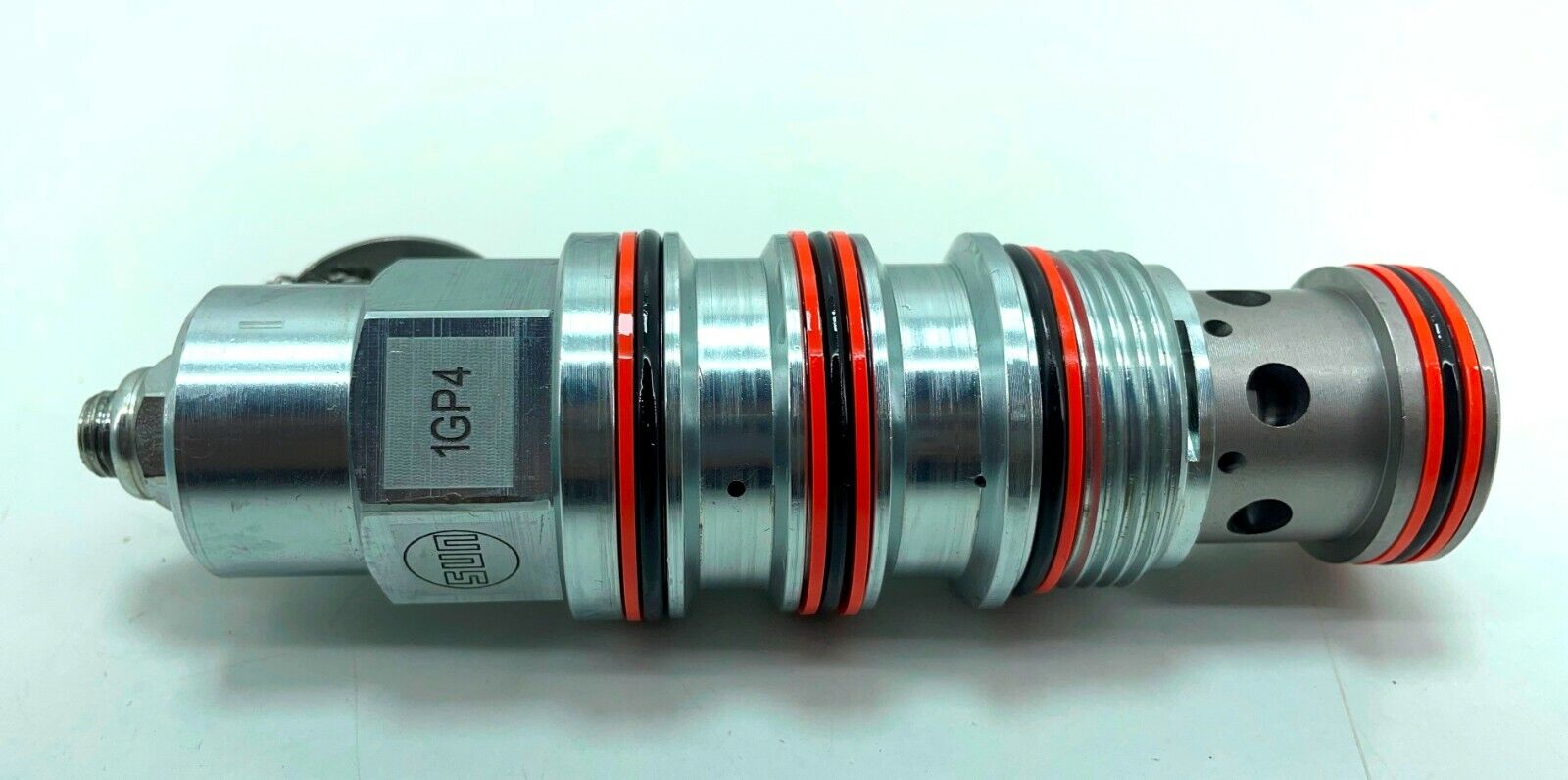

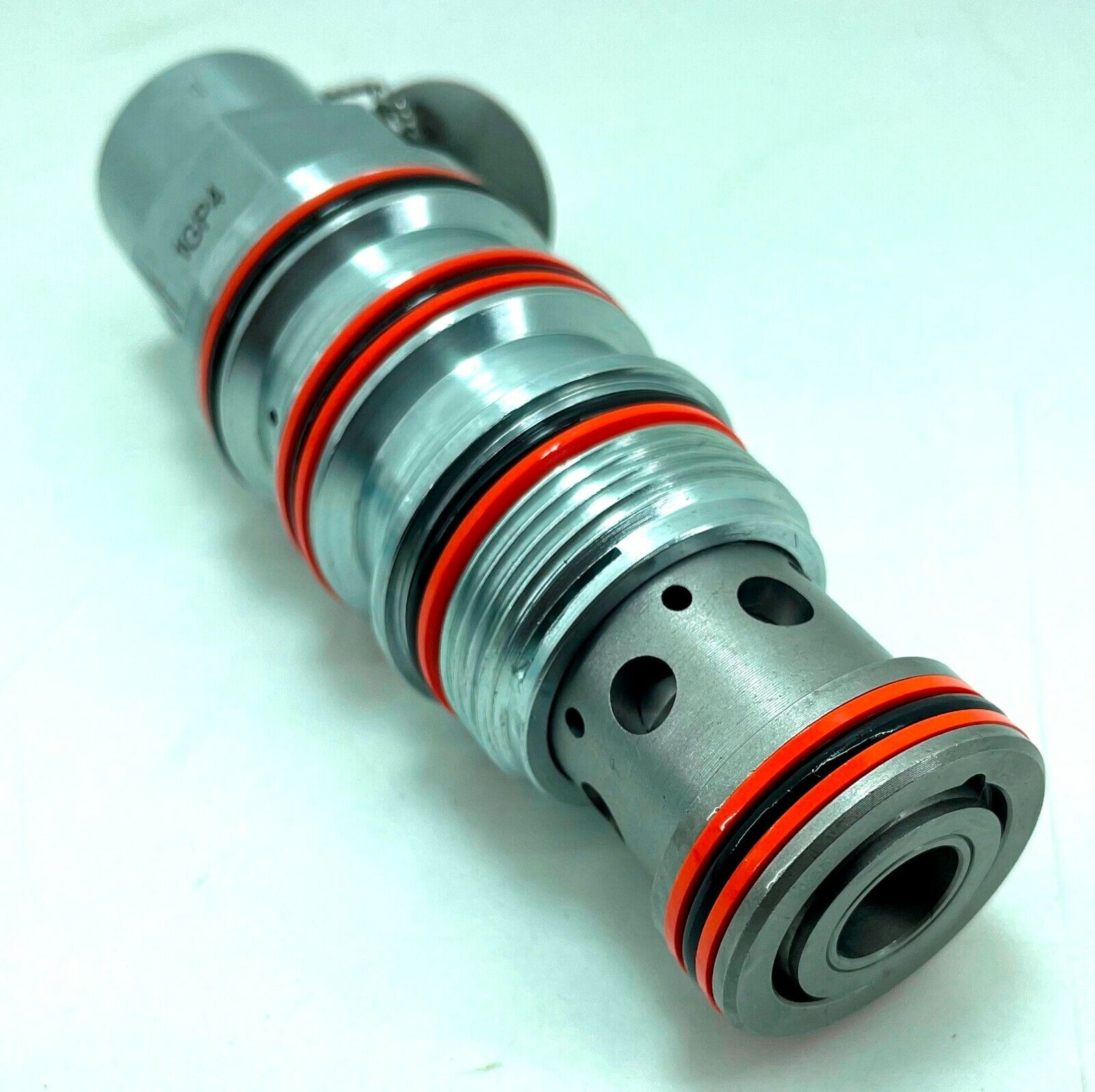

| Description | Valve Counterbalance Control |
| Internal code | IMP243206 |
| Weight | 1 |
| Custom code | 84812010 |
| Technical specification | Cavity T-24A Series 4 Capacity 120 gpm Pilot Ratio 2:1 Maximum Recommended Load Pressure at Maximum Setting 4615 psi Maximum Setting 6000 psi Factory Pressure Settings Established at 2 in³/min. Maximum Valve Leakage at Reseat 5 drops/min. Check Cracking Pressure 20 psi Adjustment - No. of CCW Turns from Min. to Max. Setting 5 Operating Characteristic Standard Reseat >85% of setting Valve Hex Size 1 5/8 in. Valve Installation Torque 350 - 375 lbf ft Adjustment Screw Internal Hex Size 5/32 in. Locknut Hex Size 9/16 in. Locknut Torque 80 - 90 lbf in. Model Weight 3.51 lb. |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Sun Hydraulics - CWIL-LGN Valve Counterbalance Control number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
