| BRAND | Suntes |
| Product | DB-3233A-03 |
| Description | AIR HYDRAULIC BOOSTER |
| Internal code | IMP1077006 |
| Weight | 2 |
| Custom code | 8414.90.091 |
| Technical specification | USING OIL : BRAKE OIL - Oil to be Used : Brake Oil (Vegitable Oil) - Master Cylinder : 3/4B x 24ST (DB-2203MS-01) - Discharge Oil Volume : 5 cc - Working Air Pressure : 0.05 to 0.7 MPa (0.5 to 7 kgf/cm2) - Boost Ratio : 10 - Working Fluid And Air Temperature : 0 to 50 °C - Working Ambient Temperature : -20 to 60 °C - Vibration Resistance : 3G Spare Part List :- 1. 3 Inch Chamber Assembly DB-3733A-01 2. 3 Inch Diaphragm B00364-02 3. Master Cylinder DB-2203MS-01 4. Piston Kit DB-0703-01 5. Tank Assembly DB-0312-22 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Suntes - DB-3233A-03 AIR HYDRAULIC BOOSTER number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

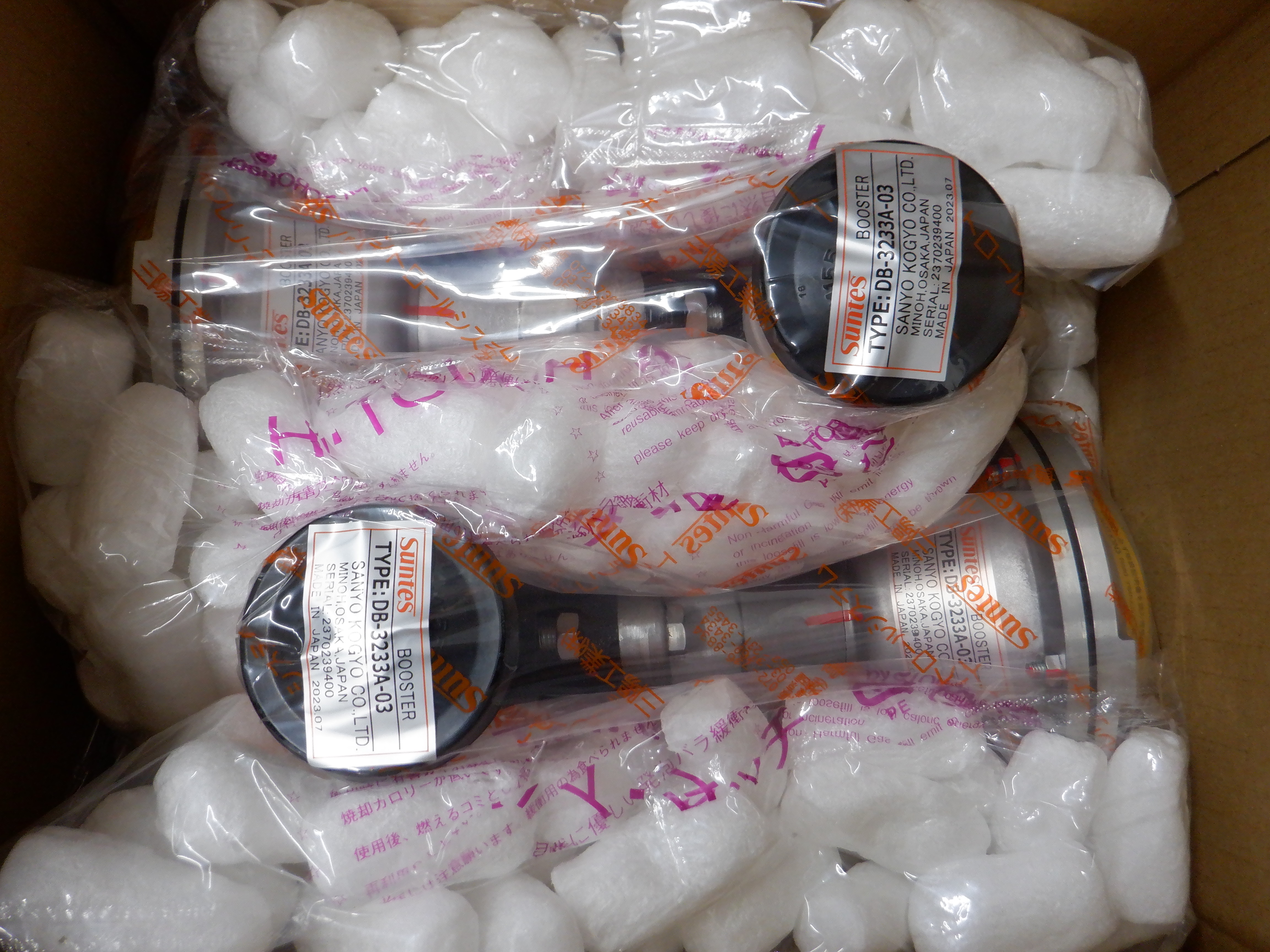

DSCF0591.JPG | |
|
|

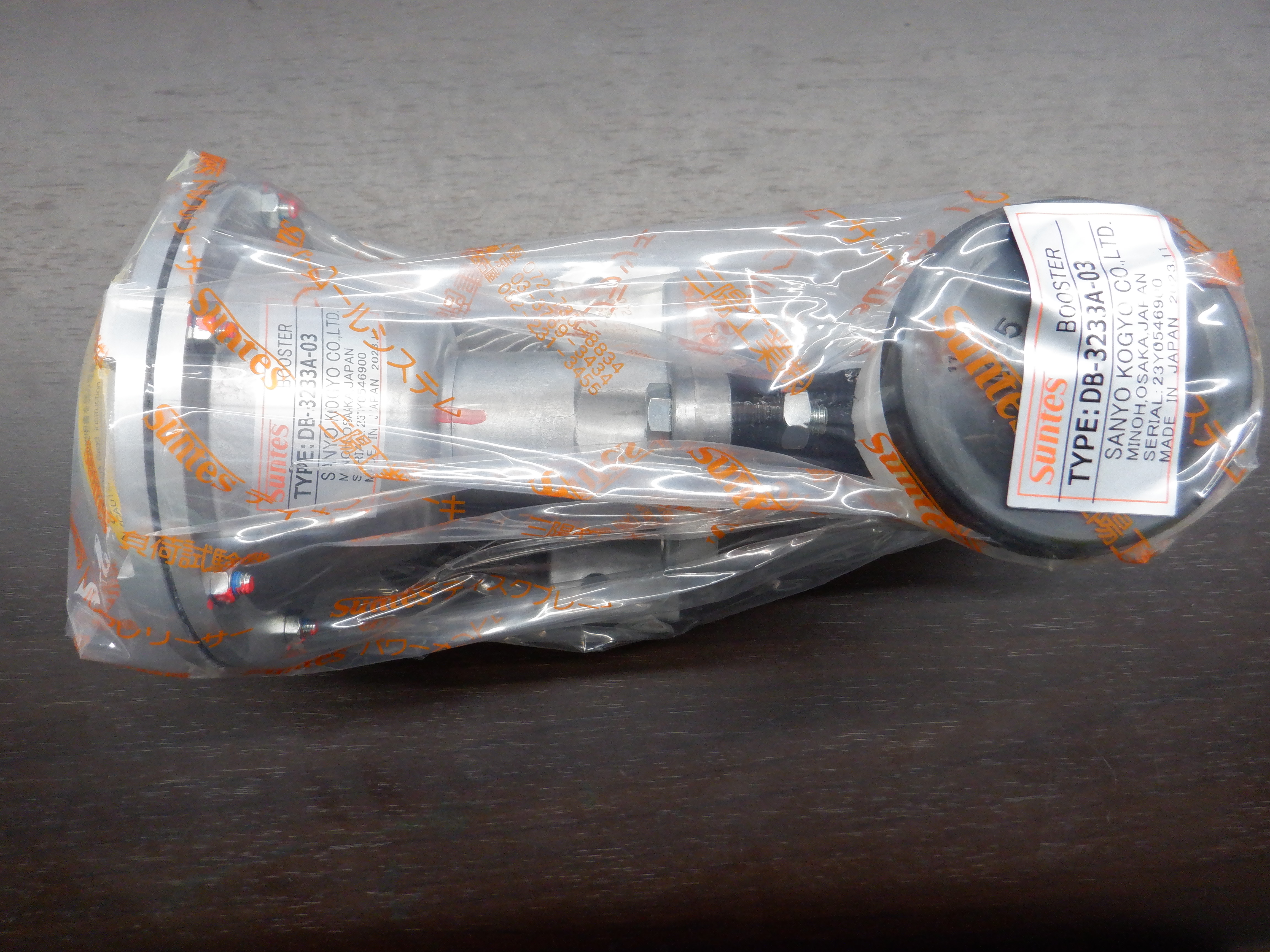

DSCF0770.JPG |
