| BRAND | Soldo |
| Product | ELR.SO.SP73200-EHW02B1 |
| Description | limit switch box |
| Internal code | IMP4433397 |
| Custom code | 85365007 |

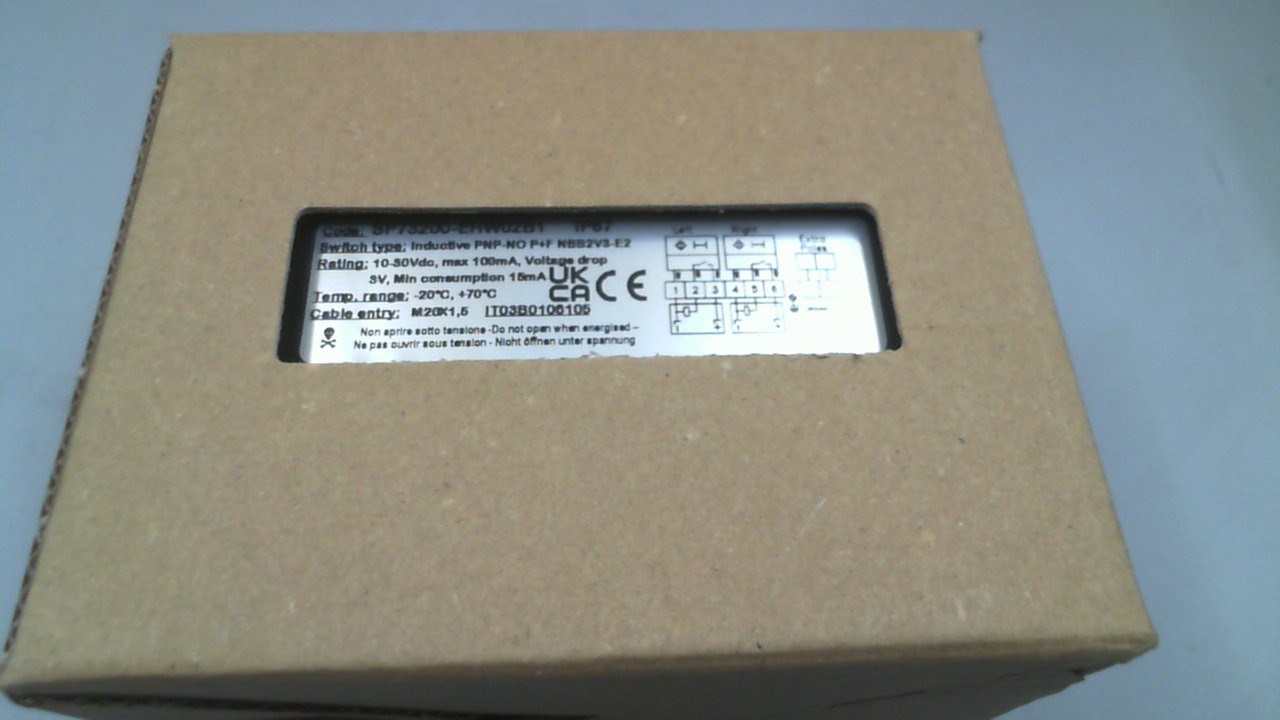

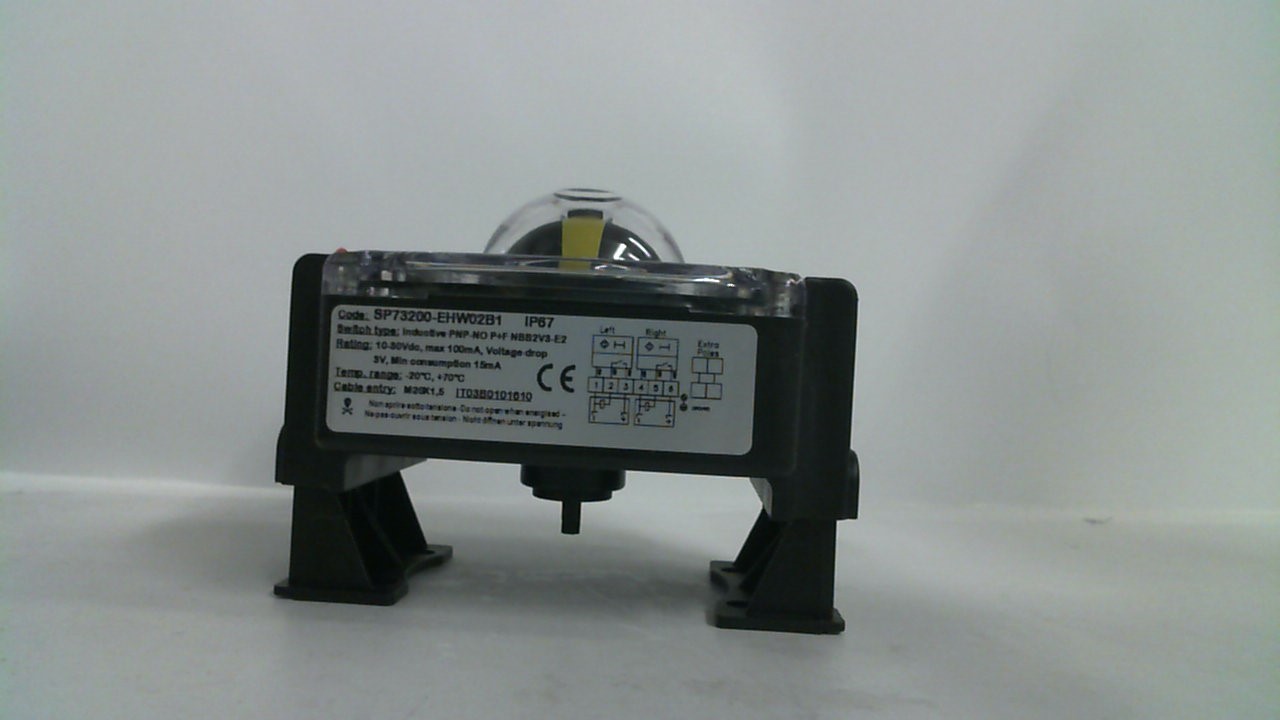

| Technical specification | ELR.SO.SP73200-EHW02B1 Limit switch box, type SOLDO SP, housing made of glass-reinforced plastic, black, built on VDI/VDE 3845 drives with flexible construction bridge, independent adjustable cams, 2x PNP NO inductive Sensors P+F NBB2-V3-E2, 3-wire, operating voltage 10-30VDC, operating current 0-100mA, pre-wired Terminal strip with additional extra poles for magnetic valve connection, 1x M20x1.5 cable entry, UV-resistant polycarbonate display dome, 3D black and yellow flow indicator, IP 67, temperature range: -20°C up to +70°C, impact-resistant and UV-resistant polycarbonate cover Compact design limit switch box type SOLDO SP, Complete with adjustable mounting bracket suitable to fit directly on VDI/VDE 3845 actuators, independent Adjustable Cams, Pre Wired Terminal Strip with Additional Extra poles for solenoid valve connection, 2x inductive Proximity sensors P+F NBB2-V3-E2, 3-wire PNP NO, Sensibility 2mm, operating voltage 10-30VDC, operating Current 0-100 mA, black polyester powder coating, 1 x M20x1.5 cable entry, UV-resistant and V0 self-extinguish Polycarbonate Indicator Dome, 3D Black and Yellow Flux Indicator, weather proof IP67, ambient temperature range: -20°+70°, reinforced techno polymer body, shaft and Bracket, shock resistant and UV resistant polycarbonate cover WT/CT: 8536 5007/IT |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Soldo - ELR.SO.SP73200-EHW02B1 limit switch box number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
