| BRAND | Valco |

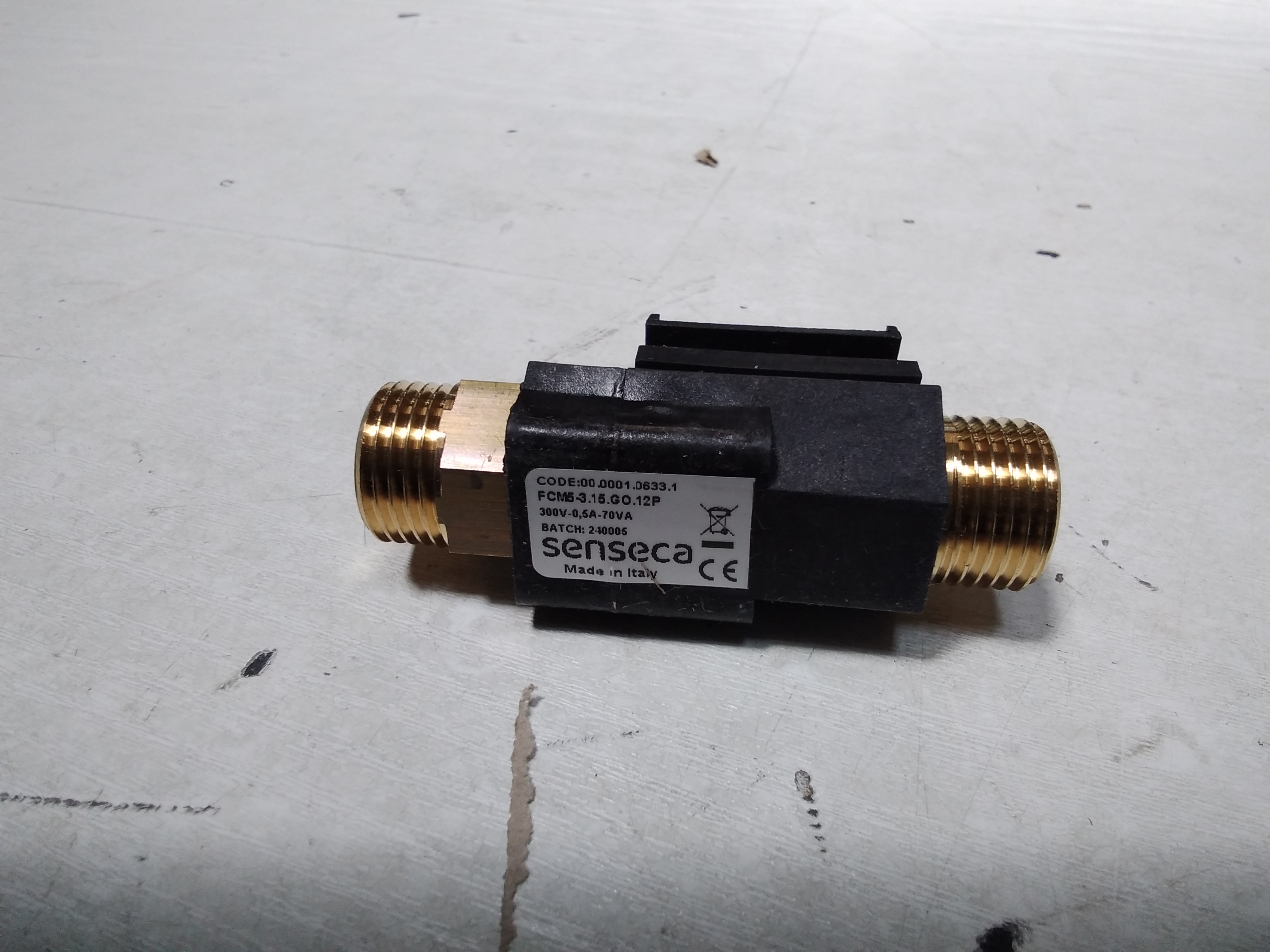

| Product | FCM5-3.15.GO.12P |
| Description | Fixed adjustment flow switch |
| Internal code | IMP4187578 |
| Technical specification | Mod. FCM5-3.15.GO.12P <horizontal or vertical mounting with flow from bottom up> Brass body Process connections 1/2" Gas-M Piston sensing element Max. working pressure 250 bar Max. working temperature 90°C Fixed calibration, see calibrations available as per technical bulletin Max. recommended flow 25 l/min H2O Pressure drop at max. recommended flow 0.5 bar Replaceable and interchangeable electric head - without removing the flow switch from the pipeline Reed contact NO Maximum electrical loads: 300Vac-dc/70VA/50W/0,5A Electrical output: Faston 6.3 mm Replaceable and interchangeable electrical head - without removing the flow switch Degree of protection IP00 ns. cod. 00.0001.0633.1 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Valco - FCM5-3.15.GO.12P Fixed adjustment flow switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
