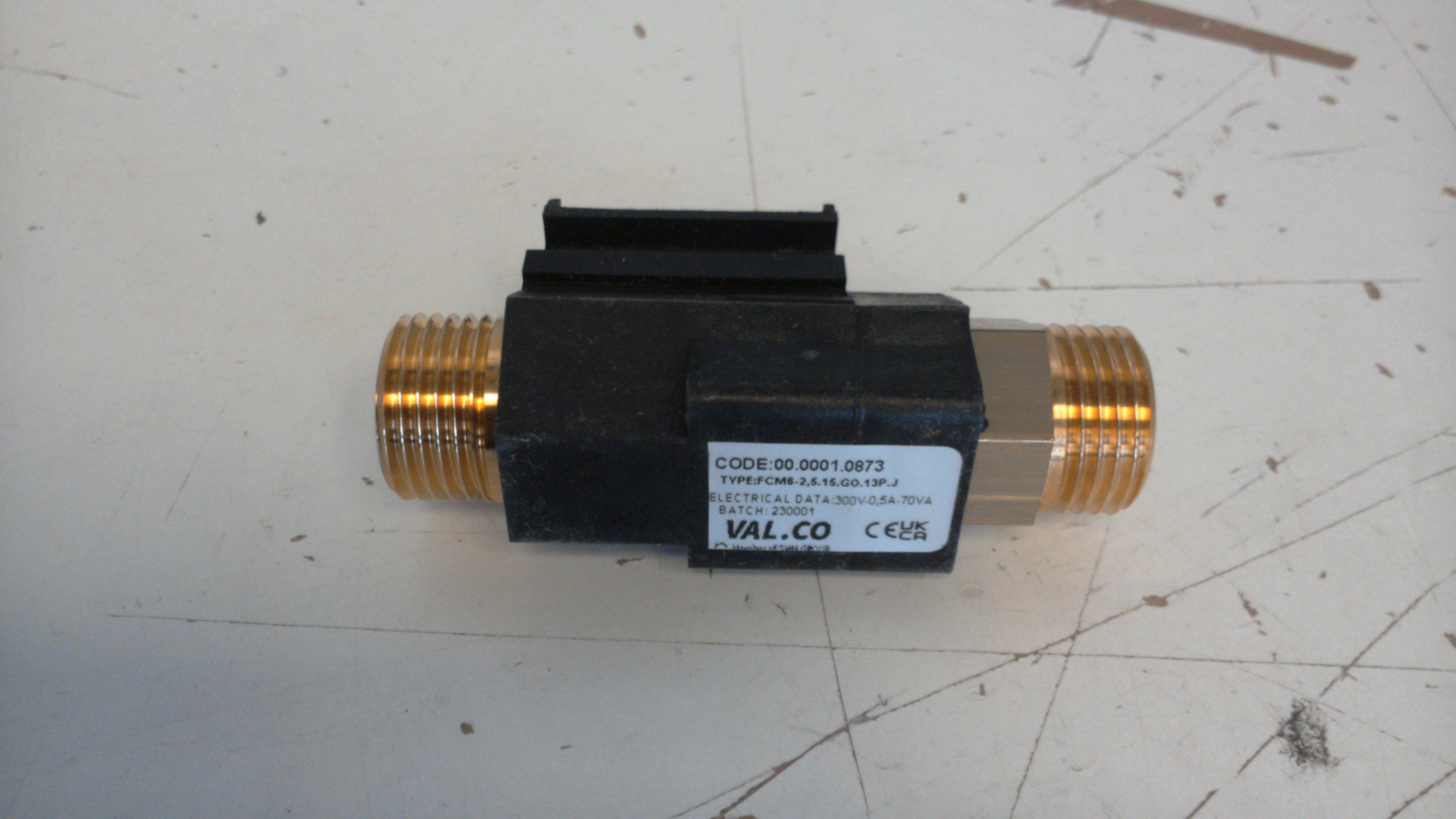

| BRAND | Valco |
| Product | FCM6-2,5.15.GO.13PJ |
| Description | Fixed calibration flow switch |
| Internal code | IMP3749277 |
| Weight | 0.17 |
| Custom code | 90261029 |
| Technical specification | horizontal or vertical mounting with flow from bottom to top> Brass body 1/2" Gas-M process connections Piston sensitive element Max working pressure 250 bar Max working temperature 90°C Fixed calibration, see available calibrations as per the technical bulletin Maximum recommended flow 25 l/min H2O Pressure loss at the maximum recommended flow rate 0.5 bar Replaceable and replaceable electric head - without removing the flow switch from the pipeline Contact Reed NA Maximum electrical loads: 300VCA-DC/70VA/50W/0.5A Electrical output: Faston 6.3 km Replaceable and replaceable electric head - without removing the flow switch Degree of protection IP00 J= special processing on process attachment 00.0001.0873 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Valco - FCM6-2,5.15.GO.13PJ Fixed calibration flow switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
