| BRAND | Honsberg |
| Product | 942530 / FF-040GR015S-942530 |

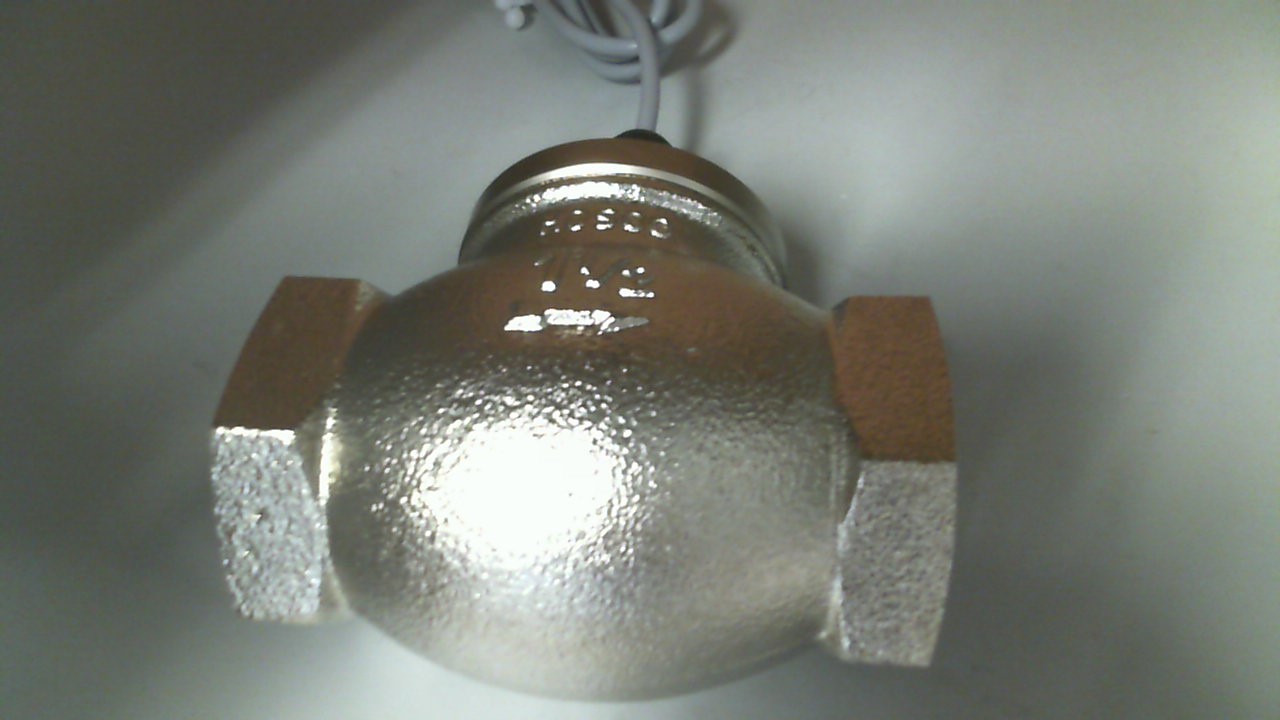

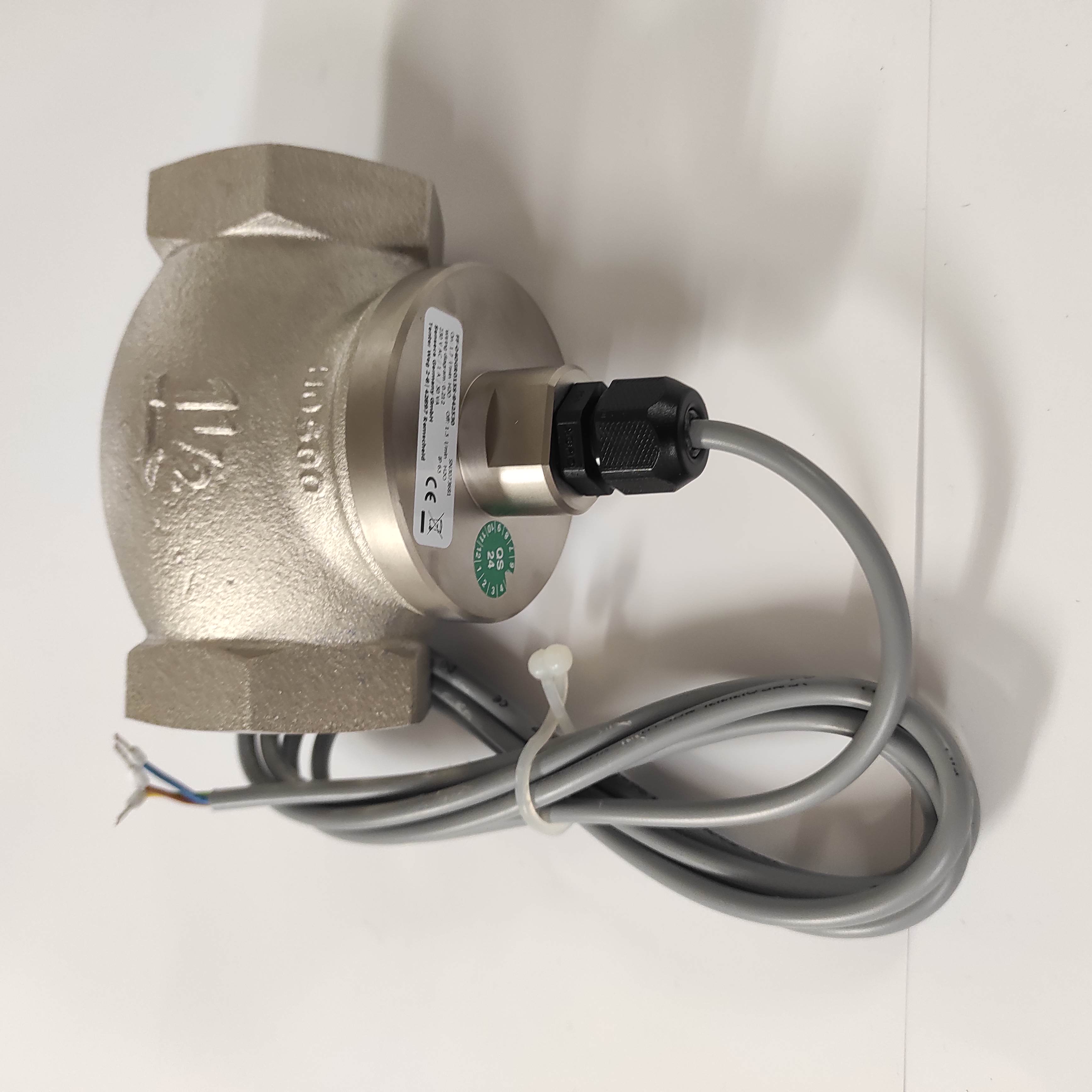

| Description | Flow Switch |
| Internal code | IMP277529 |
| Weight | 1 |
| Custom code | 85365080 |
| Technical specification | flow monitor nominal size: DN 40 Connection: internal thread G 1½ Case: gunmetal, nickel-plated Pressure resistance: PN 16 Internal parts: POM Seal: NBR Media temperature: -20... +90 °C Ambient temperature: -20... +70 °C Adjustment range: SC piston Switch point: 1.5 l/min H2O falling off, 1.7 l/min rising Switch head: nickel-plated brass El. Connection: PG with 1.8 m cable El. Contact: reed switch Contact rating: 230 V AC 1 A 50 VA Connection diagram: Closer, connection diagram No. 0.212 Protection class: IP65 Flow direction: Horizontal from left System Cleaners 942530 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Honsberg - 942530 / FF-040GR015S-942530 Flow Switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
