| BRAND | TEE |
| Product | GIGA-I 125/315-30/4 / PN: 2218518 |
| Description | Dry runner standard single pump |
| Internal code | IMP4985919 |

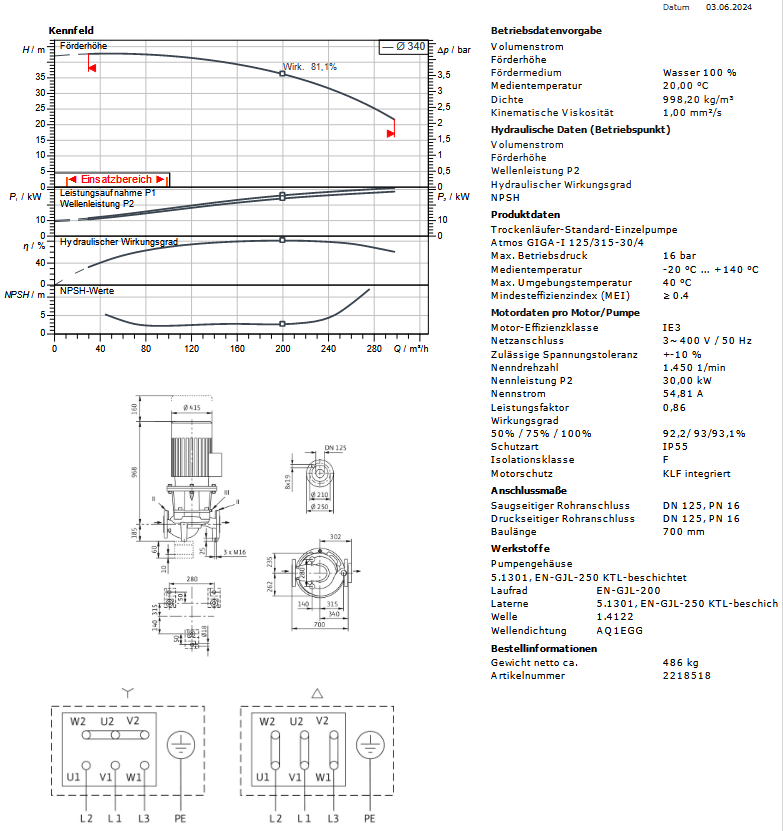

| Technical specification | Operational data Pumped medium: water 100% Media temperature: 20.00 °C Requested flow rate: Requested funding amount: Min. media temperature: -20 °C Max. media temperature: 140 °C Min. ambient temperature: -15 °C Max. ambient temperature: 40 °C Maximum operating pressure: 16 bar Design note: 16 bar to 120 °C, 13 bar to 140 °C Minimum efficiency index (MEI): ≥ 0.4 motor data Motor efficiency class: IE3 Power connection: 3~400V/50 Hz Voltage tolerance: +-10% Rated motor power: 30 kW Rated speed: 1.450 rpm Rated current: 54.81 A Power factor: 0.86 Motor efficiency 50%: 92.2% Motor efficiency 75%: 93.0% Motor efficiency 100%: 93.1% Insulation class: F Protection class: IP55 Motor protection: KLF integrated materials pump housing: 5.1301, EN-GJL-250 KTL-coated Impeller: EN-GJL-200 Wave: 1.4122 Shaft seal: AQ1EGG Lantern: 5.1301, EN-GJL-250 KTL-coated installation dimensions Suction-side pipe connection: DN 125, PN 16 Pressure-side pipe connection: DN 125, PN 16 Ordering information Make: Wilo Item description: Atmos GIGA-I 125/315-30/4 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for TEE - GIGA-I 125/315-30/4 / PN: 2218518 Dry runner standard single pump number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
Screenshot_1.png |
