| BRAND | Frizlen |
| Product | P/N: 36230, Type: GZWD136X64-68 |
| Description | resistor |
| Internal code | IMP4454875 |
| Custom code | 85332900 |
| Technical specification | Drawing number: 109-1313-1201-06 Continuous power: 150 watts Resistance value: 68 ohms Manufacturing tolerance: +/ -5% Your device type/specification: WID Z HCS01.X-W0028 68R 5% 150W Energy absorption capacity: 3 kWs at a temperature difference of: 330 K Wiring: 2 Radox Li.AWG 18, red,145 mm Assembly: AMP 3-pin 794186-1+794221-1 with angle made of strip-galvanized sheet metal 1 mm thick, double Z-shaped bend into which the flat resistance is plugged in, for screw mounting in your heat sink, protection class IP 20 after installation in your heat sink, mica carrier 1.5 mm thick, with full-surface cementation with fibreglass filling Your part specification 109-1313-4102-01 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Frizlen - P/N: 36230, Type: GZWD136X64-68 resistor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

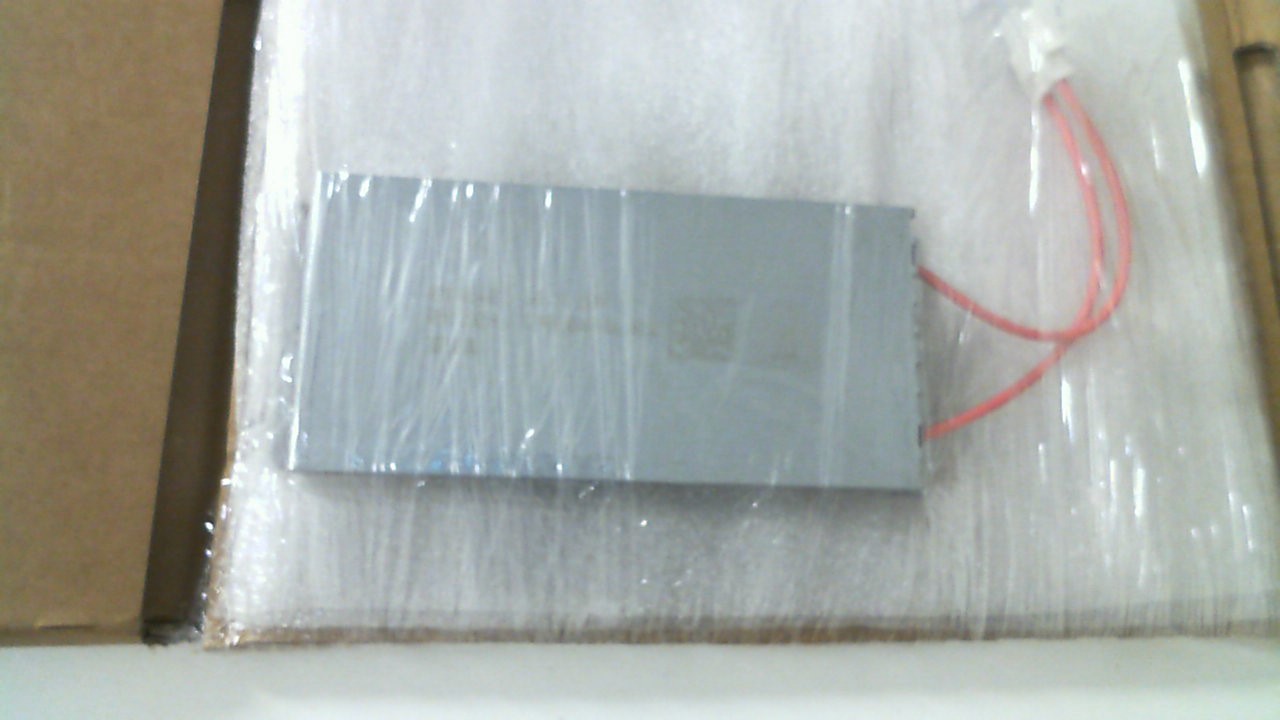

WIN_20211216_15_26_30_Pro.jpg |
