| BRAND | B-COMMAND |
| Product | HT-LA06-XXX |
| Internal code | IMP4752955 |

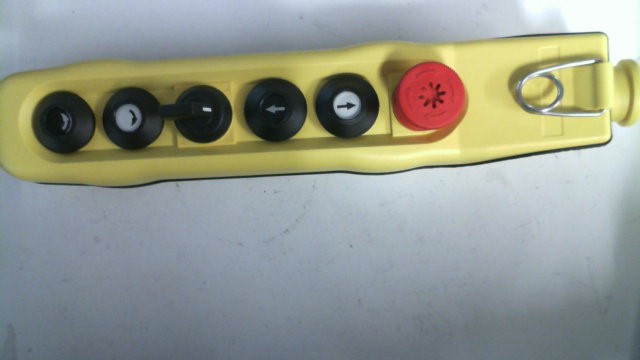

| Technical specification | B-COMMAND Lady series hanging buttons (XXX=final item number will be issued after the order has been placed) Consisting of 6 command/reporting stations: 1: Emergency stop mushroom button (1NC) 2: Button On (1NO) 3: Off button (1NO) 4: Locking selector switch 0-1 (1NO) 5: Right swivel button (1NO) 6: Left swivel button (1NO) Mechanical key lock between 2/3 and 5/6. Includes anti-kink hose at the top. Electrical specifications: Self-cleaning contacts in a glass-reinforced housing, silver-coated contact surface, stainless steel screws and springs, finger protection, NC contacts force-opening Nominal thermal current: 10 A Insulation voltage: 660 V ~ Max. operating voltage: 400 V ~ Max. cable diameter: 2x1.5mm2 or 1x2.5mm2 Clamps: Secured clamping screws Electrical limits AC15 Ve (V) 24 48 120 240 400 Ie (A) 10 10 6 3 1.9 DC 13 Ve (V) 24 48 125 250 e (A) 2.5 1.25 0.55 0.30 Mechanical specifications: Protection class: IP 65 Rubber grommet diameter: 12-17mm Operating temperature range: -25°C... +70°C Storage: -40°C... +70°C Insulation class: II (double insulation) Mechanical life: 3x106 actuations Total length/weight: 424mm, approx. 0.59kg |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for B-COMMAND - HT-LA06-XXX number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
