| BRAND | J+J Automation |
| Product | P/N: AEK2EH40G, Type: J4C S35 |
| Description | 2-piece 2 way stainless steel ball valve |
| Internal code | IMP4270260 |
| Custom code | 84818081 |

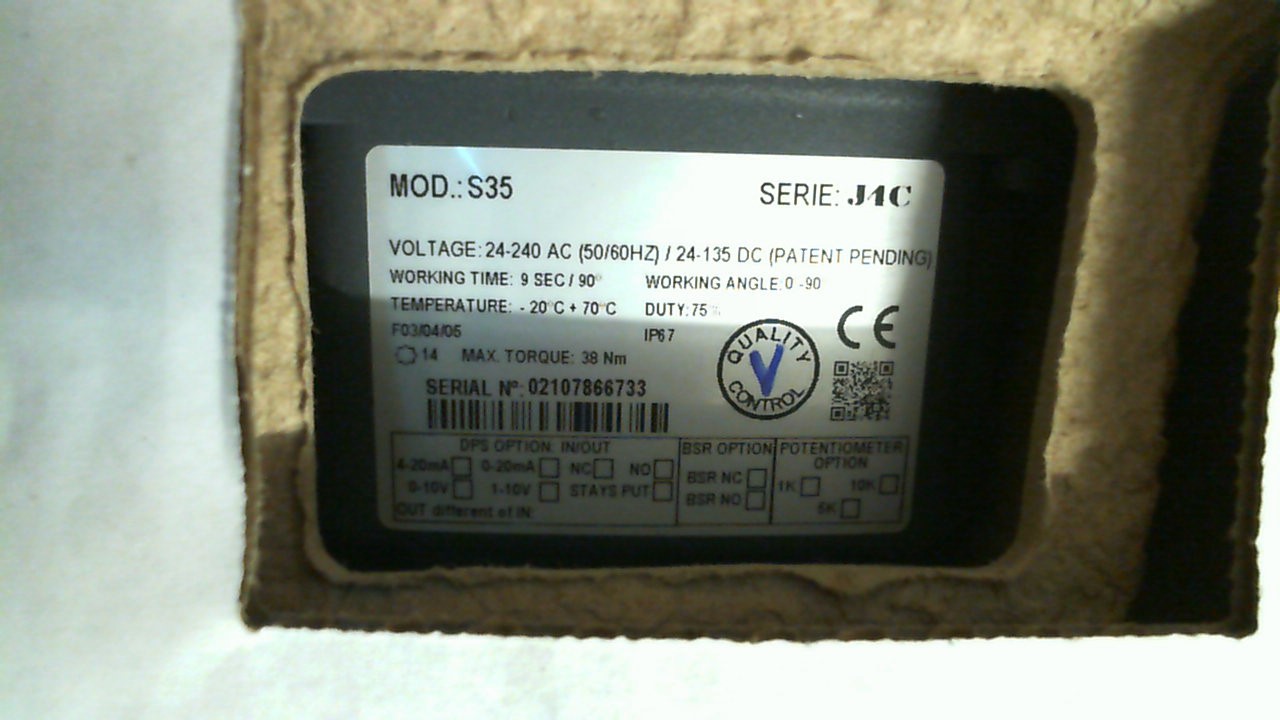

| Technical specification | Automatic fitting consisting of: 2 Piece 2 Way Stainless Steel Genebre Ball Valve 2015, ISO5211, size: DN40/ 1 1/2" Internal thread: DIN EN 10226 (ISO 7/1 — DIN 2999) Pressure rating: PN63 Seat/O-ring seal: PTFE +15% GF/ FKM Electric part-turn actuator Model: J4C S35 Power supply: 24 - 240 V AC (50/60 Hz) + 24-135 VDC flange: F03/F04/F05 Octagonal: *14 Connection: EN175301-803 form A industrial form C (9.4mm) Ambient temperature: -20°C/+70°C Degree of protection: IP67 Housing material: PA6 2 Piece 2 Way Stainless Steel Genebre Ball Valve 2015, ISO5211, size: DN40/ 1 1/2" Internal thread: DIN EN 10226 (ISO 7/1 — DIN 2999) Pressure rating: PN63 Housing material: 1.4408 Material ball: 1.4408 Seat/O-ring seal: PTFE +15% GF/ FKM Medium temperature range: -25°C/180°C Overall length in mm: 103 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for J+J Automation - P/N: AEK2EH40G, Type: J4C S35 2-piece 2 way stainless steel ball valve number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
