| BRAND | Interroll |
| Product | MI-DL0113 DL1133-AACABB0H9HDB-262mm |
| Internal code | IMP4624838 |
| Technical specification | Product name DL1133 IP 66 degree of protection Tube length (SL) 240.0 mm drum width (FW) 262.0 mm Installation length (EL/LW/BF) 268.0 mm Axle total length (AGL) 308.0 mm power 110 W winding number of poles 4 Torque [Nm] 20.1 tape tension 355 N Gear ratio (i) 30.77 speed at frequency 1 0.26 m/s frequency 1 50 Hz external connection diagram E33 high voltage 400 V rated current, high voltage 0.45 A speed at frequency 2 0.32 m/s frequency 2 60 Hz high voltage 2 460 V pipe material stainless steel: 1.4301/304 pipe diameter (A) 113.3 mm tube diameter (B) 112.2 mm tube shape crowned (standard) lid A material stainless steel: 1.4305/303 lid B material stainless steel: 1.4305/303 cap A material stainless steel: 1.4336 /316 cap B material stainless steel: 1.4336 /316 cap A design 60° grease nipple cap B version 60° grease nipple cap A diameter 35.0 mm cap B diameter 35.0 mm cap A key face width 21.0 mm cap B key face width 21.0 mm cap A key face length 20.0 mm cap B key face length 20.0 mm Oil type synthetic food grade oil Electrical connection Butt plate without cable slot Power cable length 1.0 m Power cable type unshielded; non halogen free |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Interroll - MI-DL0113 DL1133-AACABB0H9HDB-262mm number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

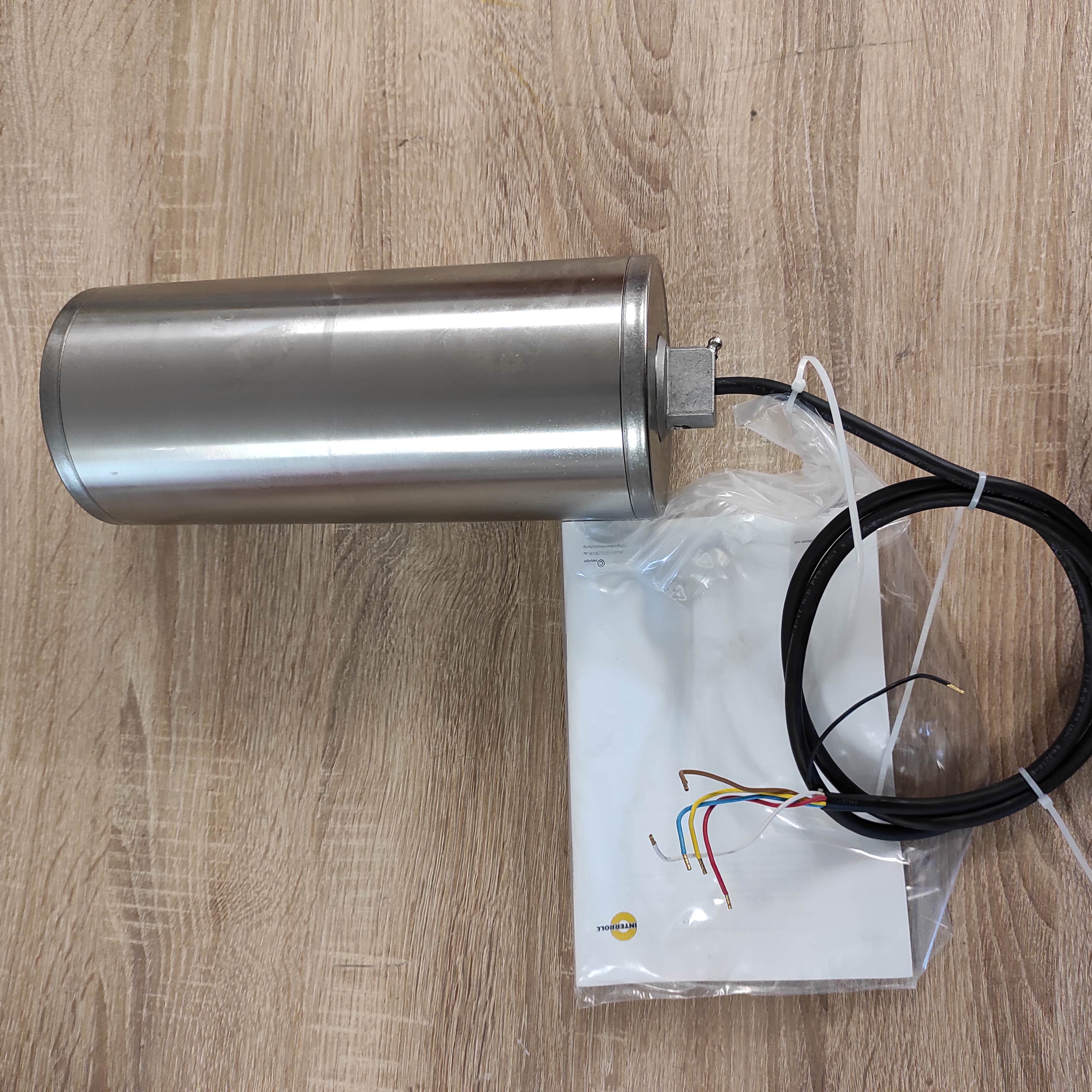

IMG_20220822_094438.jpg |
