| BRAND | Suntes |

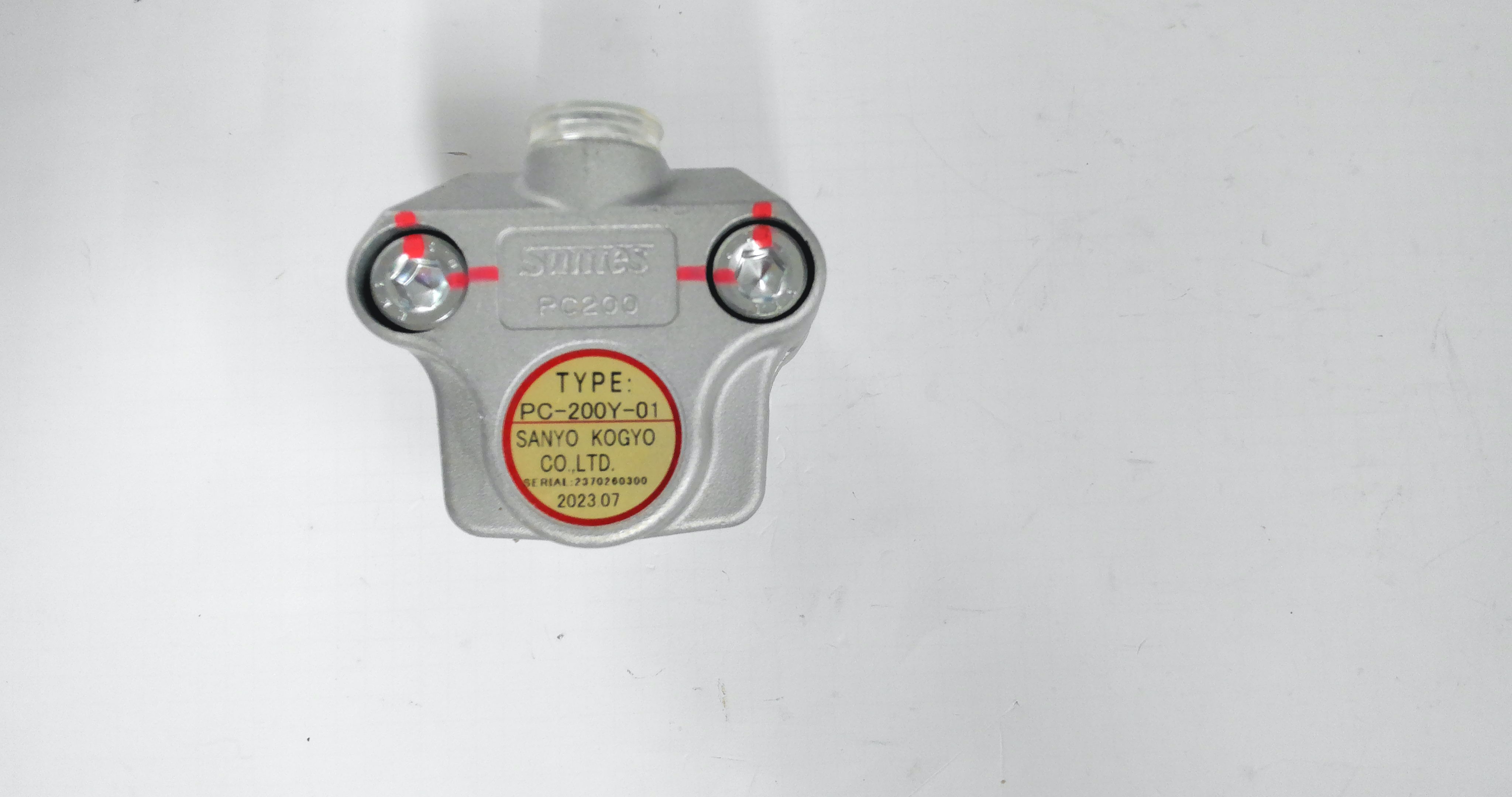

| Product | PC-200Y-01 |
| Description | Pneumatic Posi. Clamper |
| Internal code | IMP376823 |
| Weight | 0.35 |
| Technical specification | PC : Posi Clamper - 20 : Cylinder Bore, Ø20 mm 0 : Series Number Y : Operation, Hydraulic - 01 : Specification, Standard - Cylinder Diameter : Ø20mm - Area of Cylinder : 3.14cm2 - Usable Disc Diameter : Ø100mm ~ Infinity - Disc Thickness : 6mm - Pad Model Type : DB-0481-K01 - Wear Allowance Of Pad : 2mm - Working Pressure : 0.1 ~ 5MPa (1.0 ~ 50 kgf/cm2) - Fluid To Be Used : Mineral Oil - Require Oil Volume : 0.4cc Spare Part List :- 1. Pad Kit DB-0481-K01 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Suntes - PC-200Y-01 Pneumatic Posi. Clamper number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
