| BRAND | Stober |

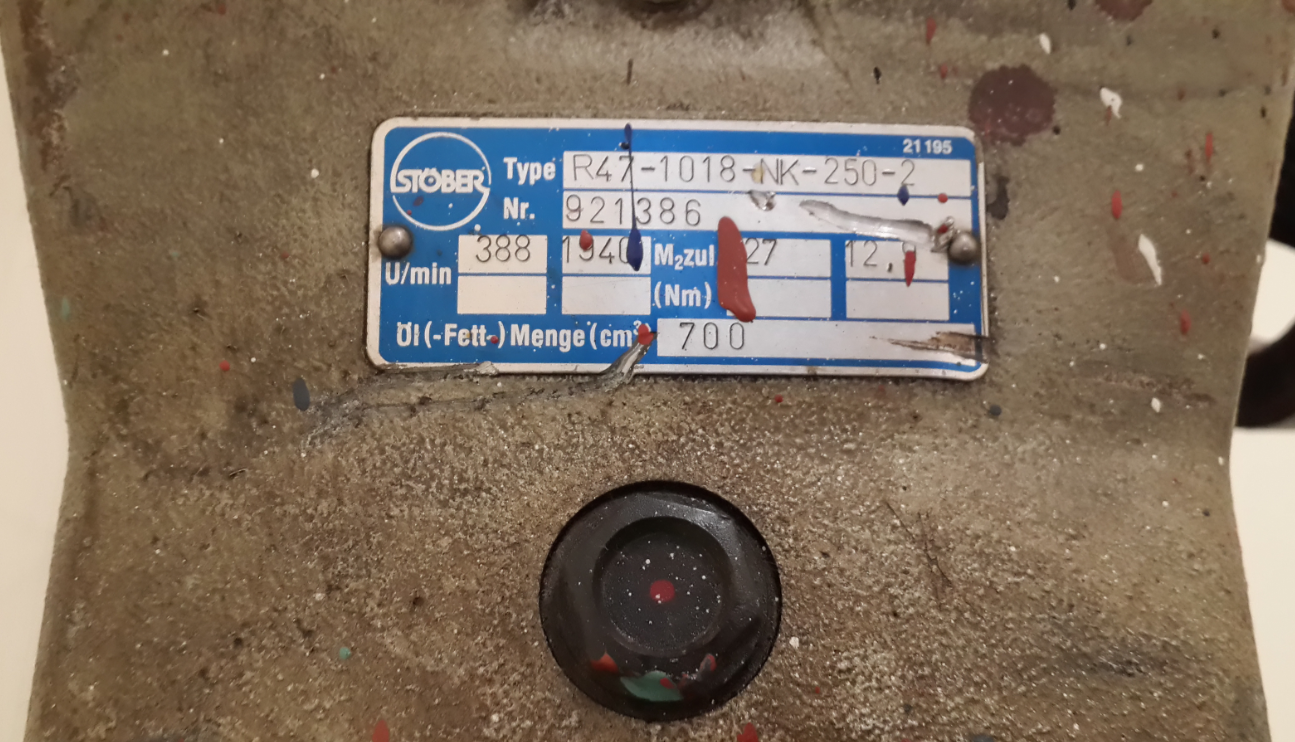

| Product | R47-1018-NK-250-2 |
| Internal code | IMP1832456 |
| Weight | 64 |
| Technical specification | Variable speed motor Customs tariff number 85015220 Customs tariff number US 8501.52.4000 Material variant type Discontinued product Motor torque 7.96 Nm Output torque 27-27-10 Nm Motor speed 3000 rpm Output speed 415-754-2076 rpm Motor power 2.50 kW Load characteristic value 0.68-2.7 Solid shaft design with key Output bearing reinforced bearing Shaft size Ø 32x 80 VP 84247 Case design foot + threaded hole IMV5 installation position Double output shaft seal WDR material FKM Adjustment by hand on the right scale Handwheel adjustment device with scale housing Scale 1 - 10 * 22394 R47 Drive cone hole Ø 28 Mobil SHC 630 lubrication CLP HC ISO VG 220 Material number 841466 Ex-Protection Gas Ex II2G Ex e IIC T3 Gb BG100 frame size Number of pins 2-pin Power 2.50 kW Engine name Exe K__R100L2Ex Standard version option* Voltage type fixed voltage + -5% D/Y circuit Voltage 230V/400V Frequency 50Hz Thermal class 155 (F) Protection class IP55 B-side canopy KLK/plug position KLK 0° Right cable entry Drive controller operation is omitted Self-ventilated cooling mode Painting 2KG/2-Comp. -Primer color RAL 7001 silver grey Paint options Output not painted ATEX II3GD c/k T3/120°C Ta=0.. 40°C Documentation language German Documentation language English |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Stober - R47-1018-NK-250-2 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
Mixers reducer.PNG |
