| BRAND | Varmec |
| Product | RCV 281P |
| Description | Grey cast helical gear |
| Internal code | IMP4226220 |
| Custom code | 85015220 |
| Technical specification | 01,56 BG100B14 28x60mm Engine Input BG100B14 Input Shaft: 28mm Reduction I: 1,56 Max. torque: 47 Nm Output Shaft: 28x60mm with cylindrical thread M8x18mm 1 pcs. 6T3-3,0-100LA4-B14-PTC/PT IE3 6T3C 3.00kW 100Lb4 B14 1440 230/400V PTC&P Three-phase motor Aluminium Design: B14 Terminal box position፦ Efficiency class: IE3 Engine power: 3.00kW Engine speed: 1440/min Efficiency: 87.7% Voltage: 230/400V 50Hz -3.0kW 220/380V 50Hz -3.0kW 255/440V 60Hz -3.3kW 275/480V 60HZ Rated current (400V/50Hz): 6.30A Degree of protection: IP55 Insulation class: F Motor protection: PTC & PTO 150°C Motor shaft: 28x60mm Motor flange: 160 mm Paint: Plain aluminium/RAL 9006 Ventilation: self-ventilated Customs tariff No: 8501 52 20 Option (s)፦ Weight: 24.50 kg Customs tariff No: 85015220 Country of origin: China 1,00 pcs cme100 servovent. External fan CME BG 100 servovent.1x230V 0.14A o.K without terminal box, with cable Connect connection 1x230V with luster terminal in the engine terminal box Power P: 16 watts Rated current: 0.14A (50Hz), 0.01A (60Hz) Installation length from holes: 93 mm Galvanized fan Customs Tariff No: 85030099 Origin: Italy |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Varmec - RCV 281P Grey cast helical gear number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

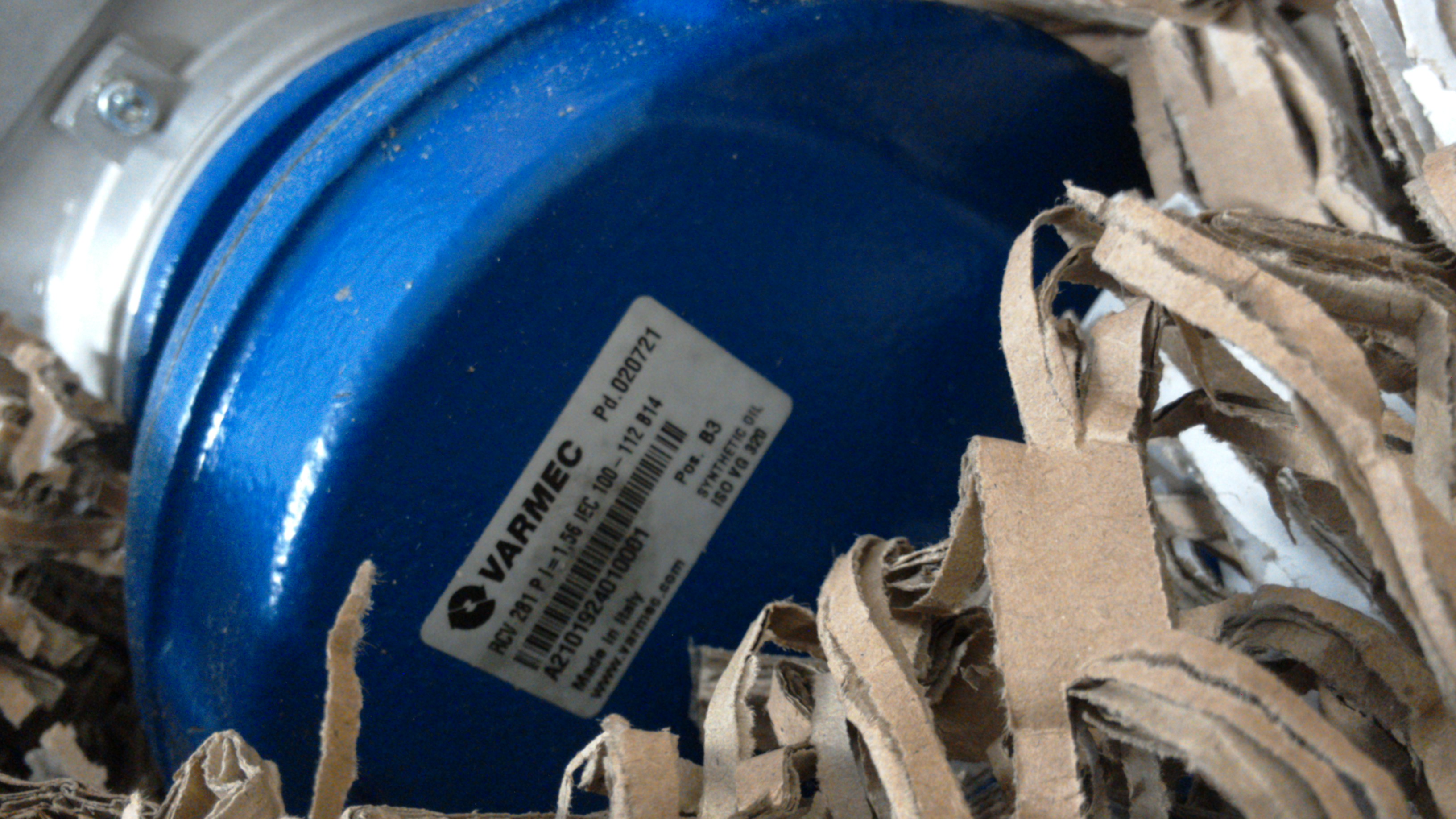

WIN_20210709_16_40_23_Pro.jpg | |
|
|

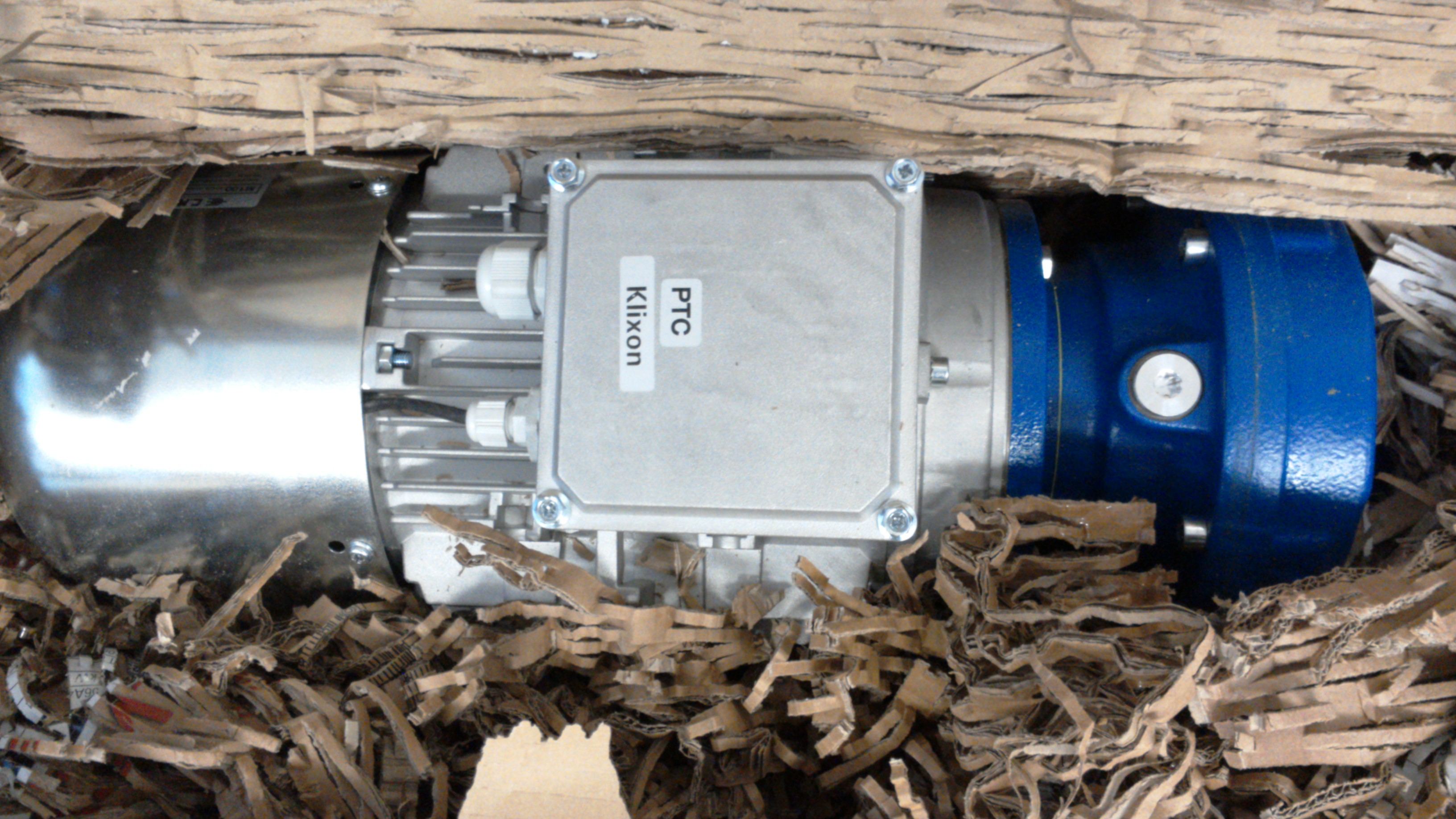

WIN_20210709_16_40_46_Pro.jpg |
