| BRAND | Waveshare |

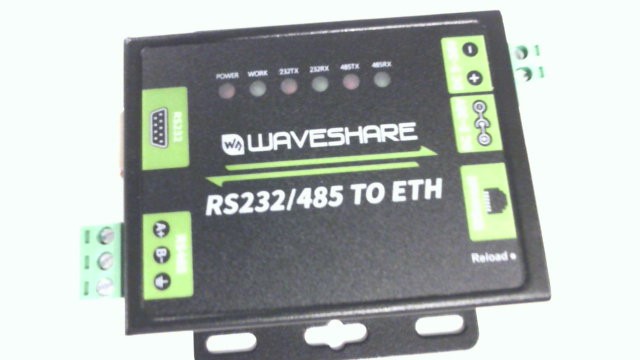

| Product | RS232/485 TO ETH |
| Description | inverter |
| Internal code | IMP4823500 |
| Custom code | 8543709990 |
| Technical specification | SKU: 16530 Ethernet: Connector: 4-pin RJ45 Communication rate: 10/100Mbps Interface protection: 2KV electromagnetic isolation Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket TX cache: 16Kbyte RX cache: 16Kbyte RS485/RS232: Connector: RS485: screw terminal (A+, B-, GND) RS232: DB9 male Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1, 2 Parity bit: None, Odd, Even, Mark, Space Baudrate: 600bps~230.4Kbps TX cache: 2Kbyte RX cache: 2Kbyte Hardware flow control: RTS/CTS Interface protection: RS485: 2KV ESD protection, lightningproof, anti-surge, over-current protection RS485 pull up/down registers: 2.2KΩ Power: Power supply: 5.0~36.0V (5V recommended) Operating current: 86.5mA (@5V) Power consumption: <1W Interface protection: reverse-proof, ESD protection, anti-surge Environment: Operating temperature: -40~85°C Storage temperature: -40~105° |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Waveshare - RS232/485 TO ETH inverter number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
