| BRAND | Carl Rehfuss |

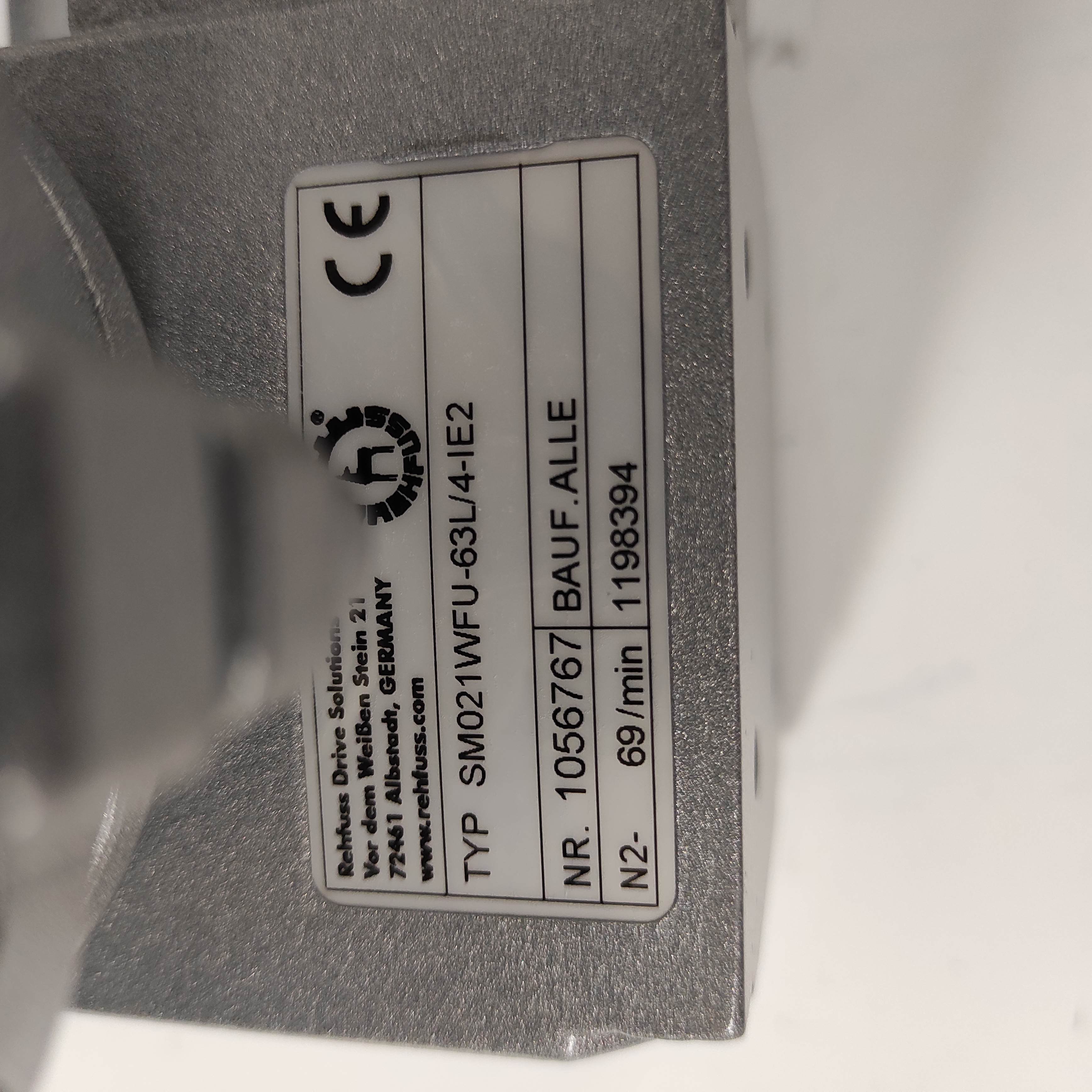

| Product | SM021WFU-63L/4-IE2 |

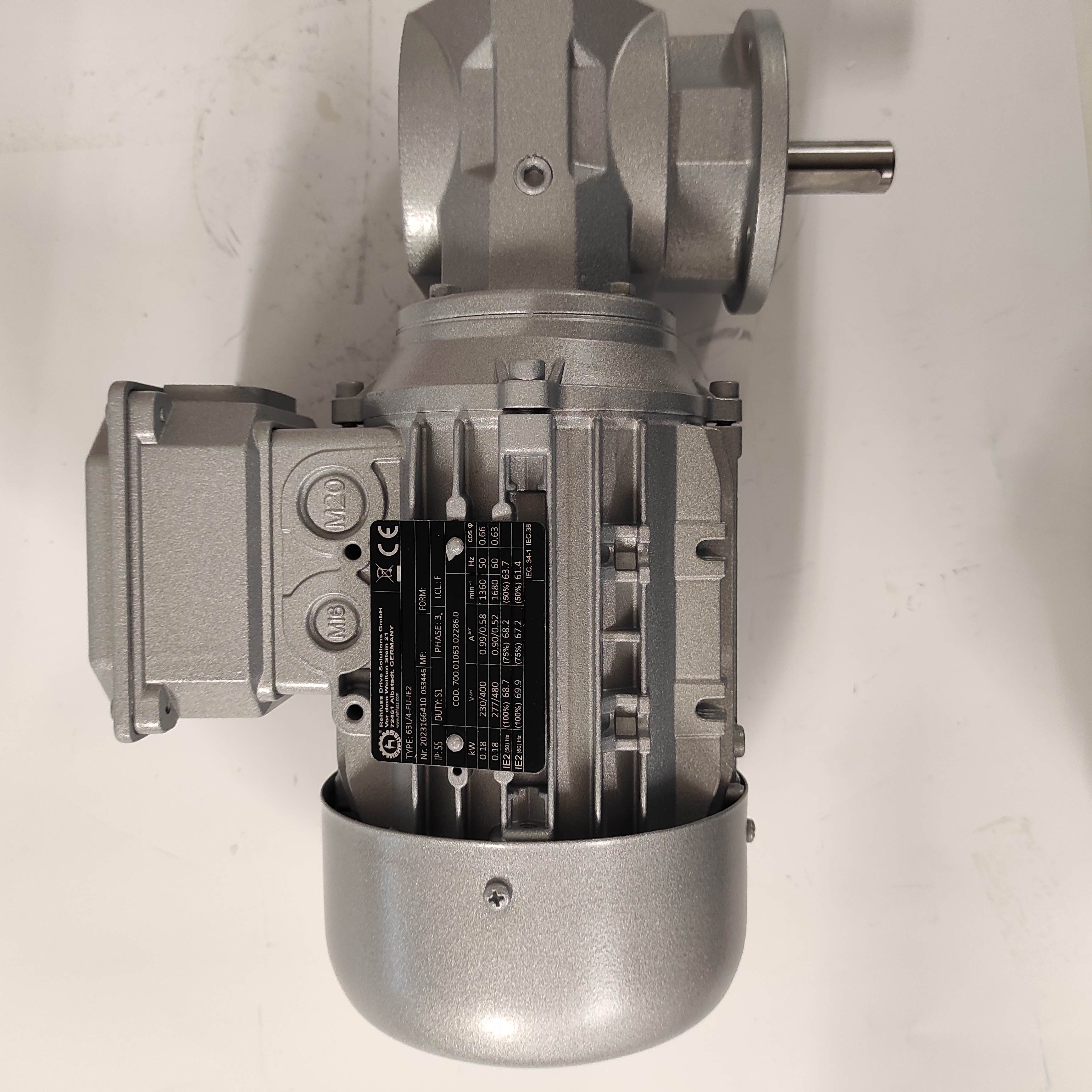

| Description | worm gear motor |
| Internal code | IMP4430386 |
| Custom code | 85015100 |

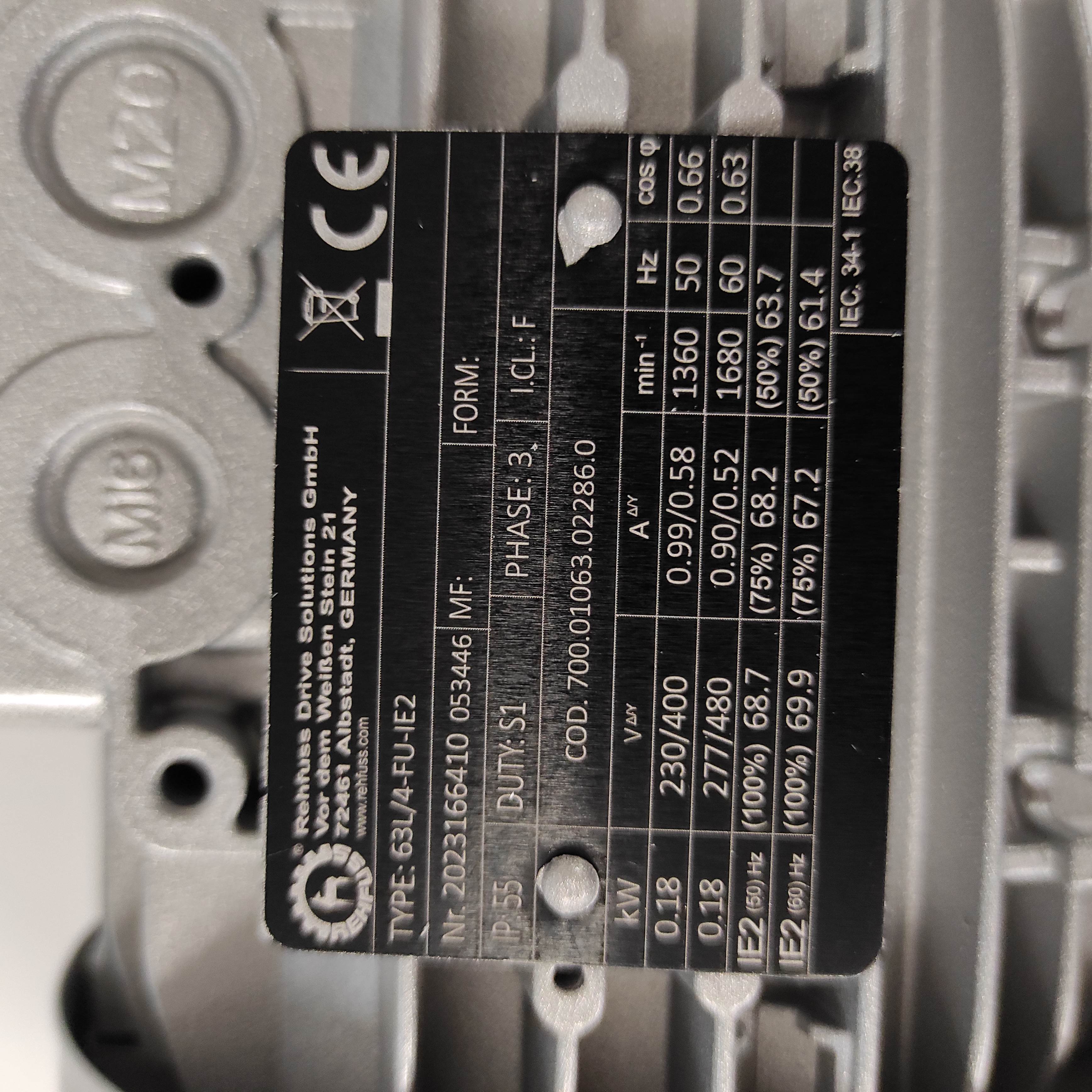

| Technical specification | Type/Size: SM021WFU-63L/4-IE2 Design/installation position: universal Output flange [mm]: 90 Output flange side: C Solid shaft dxl [mm]: 16x40 Solid wave side: C Output shaft material: 1.0504 Translation i=: 20 Output speed [rpm]: 69 Torque [Nm]: 19 Operating factor: 1.2 Painting: RAL9006-2K Lubricant Type:: CLP PG VG320 Lubricant quantity [liter]: 0.07 Power type: 3AC Rated power [kW]: 0.18 Operating mode: S1 Rated voltage [V]: 230/400 Frequency [Hz]: 50 Insulation class: F Protection class IP: 55 KK position: A3/1XM20X1.5 Energy efficiency class: IE2 EU documentation Gearbox marking: CE Engine marking: CE |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Carl Rehfuss - SM021WFU-63L/4-IE2 worm gear motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
IMG_20240802_150914.jpg | |
|
|
IMG_20240802_150920.jpg | |
|
|
IMG_20240802_151315.jpg | |
|
|
IMG_20240802_151325.jpg |
