| BRAND | Carl Rehfuss |
| Product | SM021WFU-63L/4 (805.02021.00745.0) |
| Description | Worm gear motor |
| Internal code | IMP1702975 |
| Weight | 6.5 |
| Custom code | 85015100 |

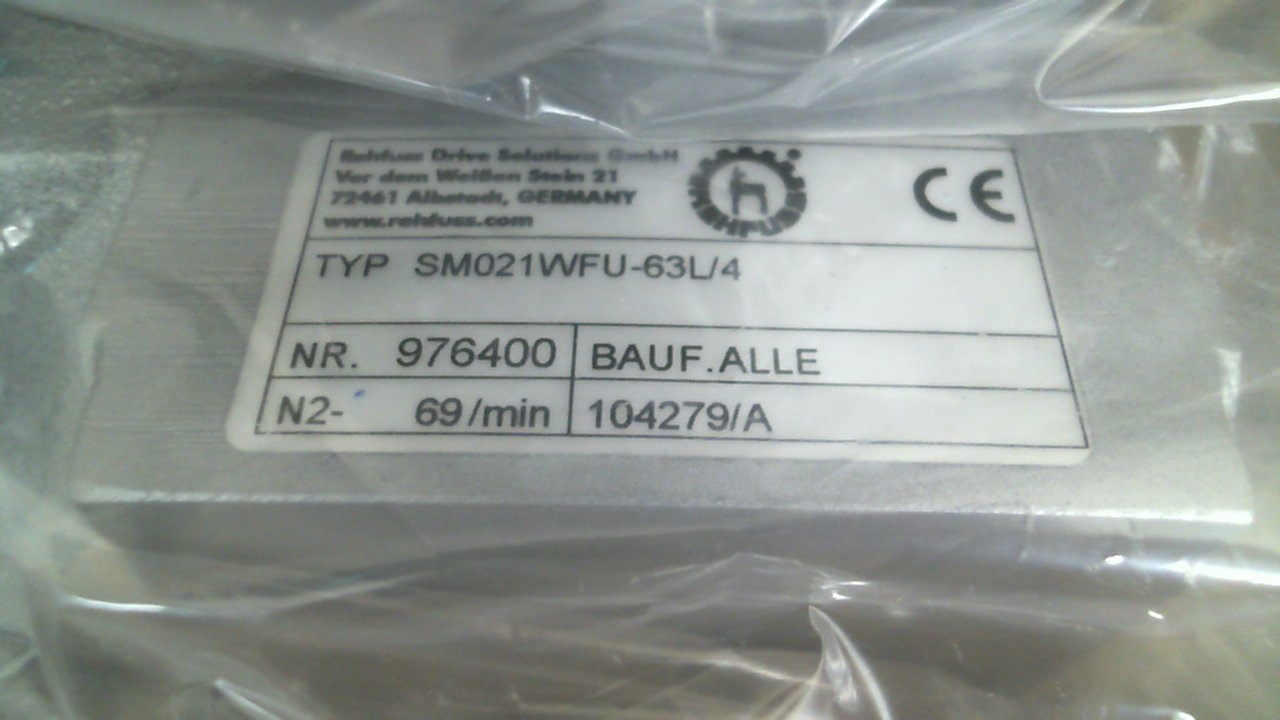

| Technical specification | Type/Size SM021WFU-63L/4 Type of fit/installation position universal Output flange [mm] 90 Output flange side A solid shaft dxl [mm] 16x40 Solid Wave Page A Translation i=20 Output speed [rpm] 69 Torque [Nm] 18 Operating factor 1.2 Paint RAL 9006 Lubricant type: CLP PG VG320 Lubricant Quantity [Ltr.] 0.070 Stromart 3AC Rated power [kW] 0.18 Operating mode S1 Rated voltage [V] 230/400 Frequency [Hz] 50 Rated speed [rpm] 1370 Rated current [A] 1.15/0.66 cos.phi: 0.67 Insulation class F Degree of protection IP 55 KK layer C3/1XM20X1.5 Engine suitable for FU Metal terminal box, 2-piece, approx. 95 x 95 mm Screw-on surface for cable gland to KK must protruding over KK lid Identification plate stamped with T.Nr.104279/A |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Carl Rehfuss - SM021WFU-63L/4 (805.02021.00745.0) Worm gear motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
