| BRAND | Weiss |
| Product | TC 700T |
| Description | rotary table |
| Internal code | IMP453697 |
| Weight | 1 |
| Custom code | 84798997 |
| Technical specification | TC0700T-0000-0000-10 Division: 02 Speed level: G MTM according to customer information [kgm≤]: 267 MTM max. (kgm≤): 213 rotational movement time approx. (s): 1.96 Time from start signal to finish message approx. 80-130 ms longer than rotational movement time Installation position: normal (MP1) Drive position: DP5 (sideways inside motor on curve side) Painted in RAL: 7035 Increased partial accuracy: no Drive type: BRE024V Limit switch voltage 24V-DC PNP Encoder: without (closed with sheet metal) Clamping disc: normal Special processing: no Direction of rotation: arbitrary Please note that unprocessed cast iron surfaces of the case after DIN EN ISO 8062-3:2008 -09 - DCTG 11 are tolerated. Drive motor: Size: 90V/4 Design: B14 (140) Brake voltage (V): 24 Motor voltage (V): 230/400 Frequency (Hz): 50 Power (kW): 2.2 Speed (min-1): 1360 Current (A): 9.5/5.5 Finish: black in accordance with UL/CSA approval |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Weiss - TC 700T rotary table number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

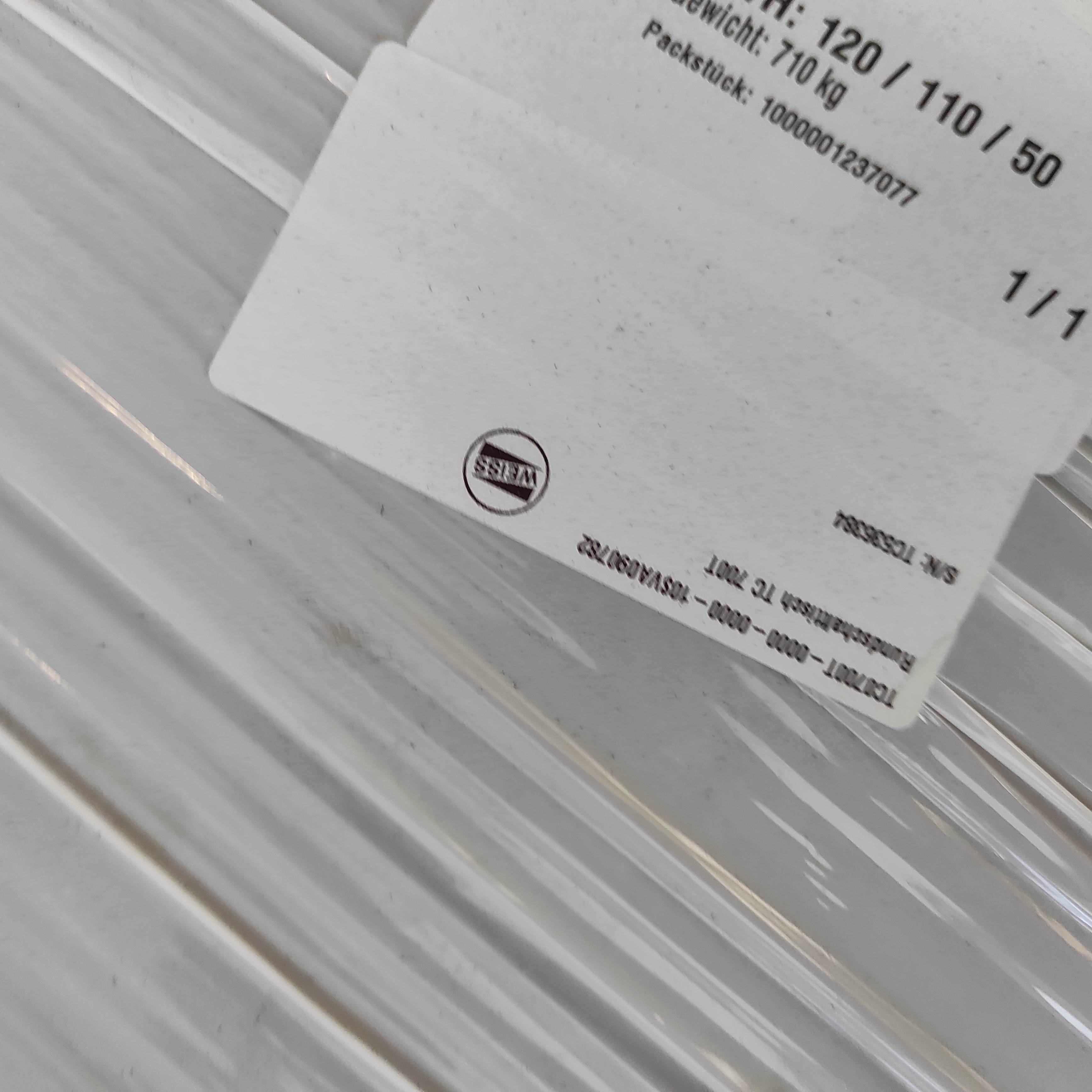

IMG_20230606_112813.jpg |
