| BRAND | Weiss |
| Product | TC220T TC354840 |
| Description | rotary indexing table |
| Internal code | IMP3348044 |
| Weight | 1 |
| Custom code | 84798997 |
| Technical specification | TC 220T rotary indexing table Product no.TC0220T-0000-0000-10 division: 02 Speed level: L MTM according to customer specification (kgm²): <13.3 id. TC354840 MTM max. (kgm²): 13.3 Rotation time approx. (s): 2.30 Time from start signal to completion notice approx. 80-130ms greater than rotation time Installation position: normal (MP1) Drive position: DP1 (lateral inside) Painted in RAL: 7035 increased part accuracy: no Drive type: BRE024V Limit switch voltage 24V-DC PNP Encoders: without (sealed with sheet metal) Tension washer: normal Special processing: no Rotation direction: arbitrary Drive motor: Build size: 63 L/8 Design: B14 (120) Brake voltage (V): 24 Motor voltage (V): 230/400 Frequency (Hz): 50 Power (kW): 0.09 Speed (rpm): 620 Current (A): 1.1/0.62 Finish: black according to UL/CSA approval |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Weiss - TC220T TC354840 rotary indexing table number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

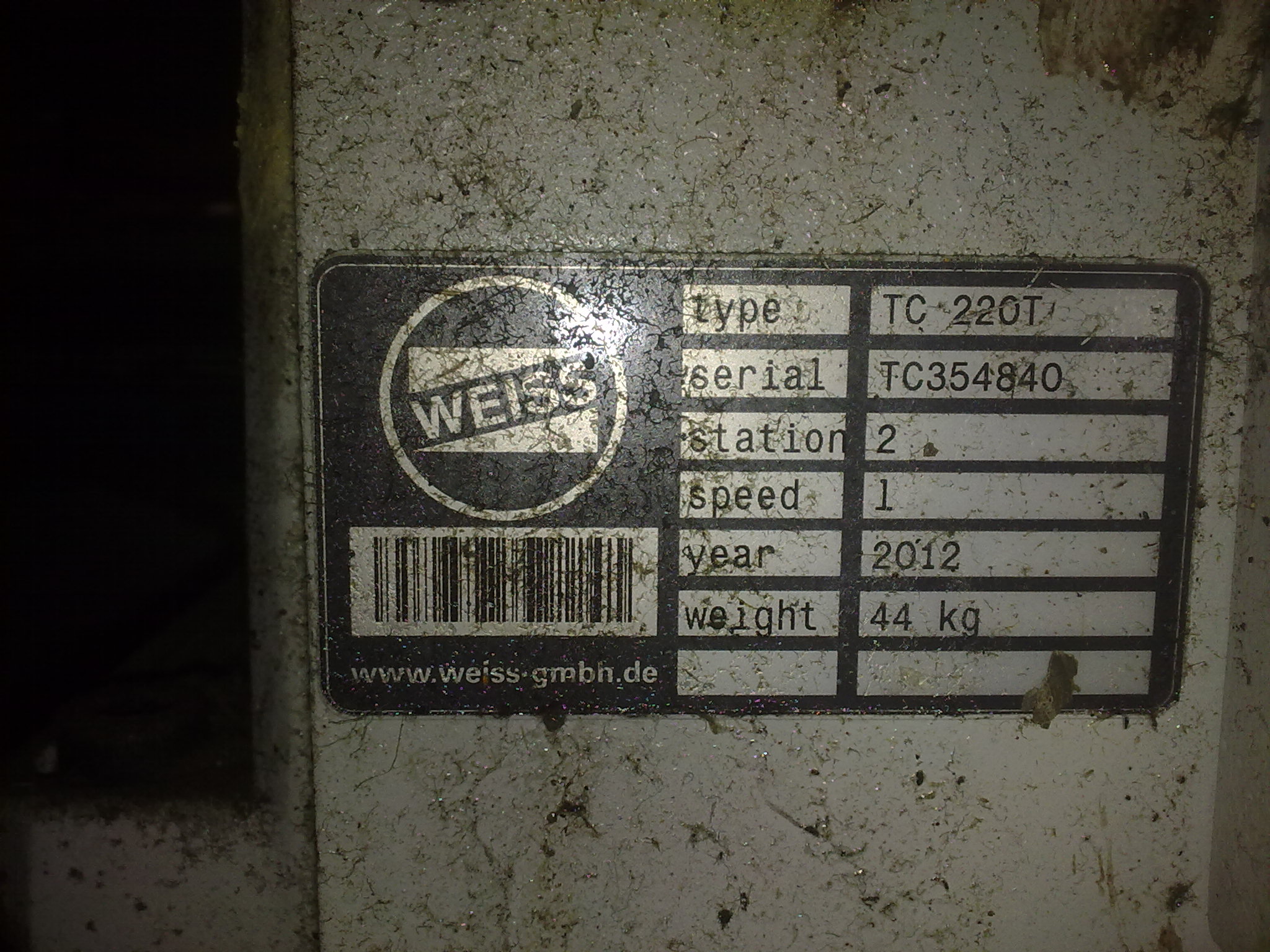

14072014093.jpg |
