| BRAND | S+S REGELTECHNIK |
| Product | 1101-7051-5021-000/ TF54 NTC10K |
| Description | Immersion temperature sensor |
| Internal code | IMP4993679 |
| Technical specification | Temperature data points [°C] Sensors/Perfect Sensor Protection output Temperature measurement range —35... +150 °C Measurement range —35... +180 °C (Max NTC = +150°C, Max LM235Z = +125°C) Process connection via immersion sleeve or mounting flange (accessory) insulation resistance 100 MΩ, at +20 °C (500 V DC) Stainless steel protection pipe, 1.4571, V4A, Ø = 6 mm electrical connection 0.14 - 2.5 mm², via screw terminals, Permissible humidity on ceramic base < 95% RH, non-condensing air Safety class III (according to EN 60 730) NTC10kOhm sensor Circuit type 2-wire connection Measurement current < 2.0 mW metal pressure screw cable connection (M 20 x 1.5); optionally with brass cable screw connection, nickel-plated (M 20 x 1.5; with strain relief, replaceable, inner diameter 6 - 12 mm) or M12 connectors in accordance with DIN EN 61076-2-101 (on request) connection head Form B, material aluminum, color white aluminum (similar to RAL 9006), Ambient temperature —20... +100 °C Protection class IP 54 (according to EN 60 529) standard IP 65 (according to EN 60 529) optional standards CE compliance, electromagnetic compatibility in accordance with EN 61326, according to EMC Directive 2014/ 30/EU |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for S+S REGELTECHNIK - 1101-7051-5021-000/ TF54 NTC10K Immersion temperature sensor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

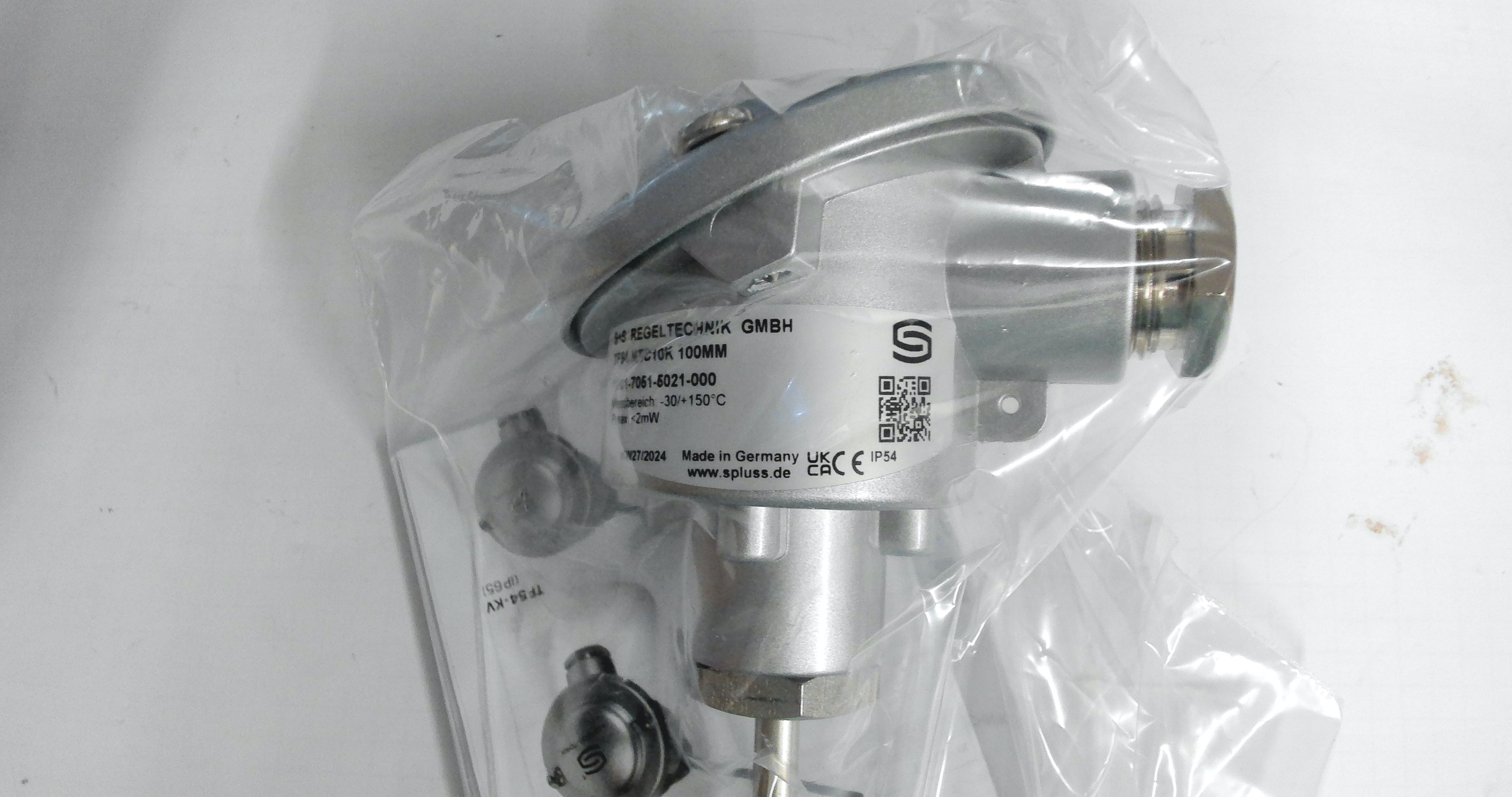

WIN_20240708_11_32_55_Pro.jpg |
